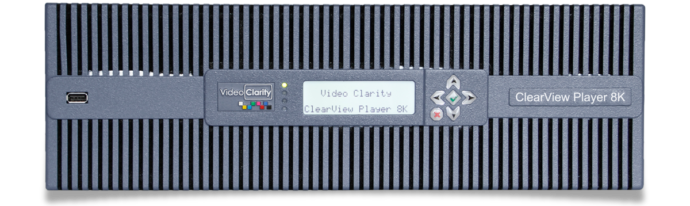

8K/4K High Capacity Player-Recorder
8K via Quad 12G-SDI or 4K with Dual 12G-SDI & HDMI input/output
-with optional IP Interfaces for ST 2110 Networks
Overview
- High capacity uncompressed recorder/player for 8K, 4K, HD, and SD formats
- 3RU form factor comes with rack kit or may be used as a deskside system
- Uncompressed recordings of video and audio may be instantly recalled for reliable 24×7 playback
- Models include 12G-SDI recording and playback with HDMI 2.1 input and output
- Add additional interfaces for ST 2110, the HDMI multi-input, or added 12G-SDI with HDMI
- VANC recording and playback on SDI or ST 2110 networks as well as 8 or 10-bit image support
- The UHD4 option for ST 2110 has Quad UHD recording or playback, its 3x mode provides 180fps UHD recording
- Comprehensive media file importer and MPEG network IP stream input decoding/recording
- Apply up to 16 channels of embedded audio per video
- Audio may be recorded and played as uncompressed PCM or Dolby Digital
- Dolby® Digital Plus Professional Audio Decoder included
- Dolby Vision video format support is an option
- Full GUI or command line scriptable, and VDCP control or GPI trigger
- Venue Player Manager included for full browser playback set up and control
- rated in RTM Log Grapher and RTM Manager during or after quality testing
