AI100
ST-2110 -20/-22/-30/-40 ANALYZER & GENERATOR supporting
up to 8K video resolution

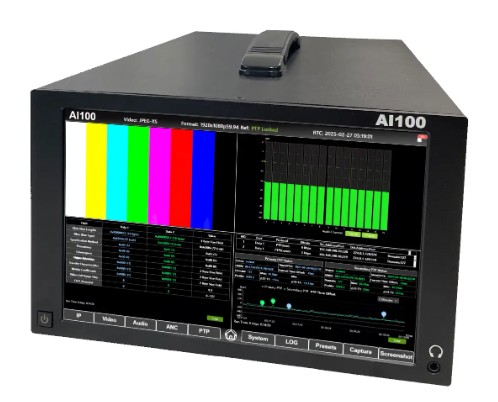

The AI100 is our unique ST-2110 stream real-time analyzer and generator for compressed JPEG-XS(-22) and uncompressed (-20) video over IP, audio(-30) over IP, and ancillary (-40) IP streams. The AI100 is available in 3RU portable or in a 1RU chassis form factor. It can be operated from a touch panel(*), from a keyboard/mouse/display or remotely through a web GUI.
Features
- ST-2110 to SDI real-time converter/decoder (supporting up to 8K, 4x 12G-SDI out)
- Real-time analysis and generation of ST2110 -20/21/22/30/40 IP streams, up to 8K video resolution
- Data analysis of UDP/RTP Payload data

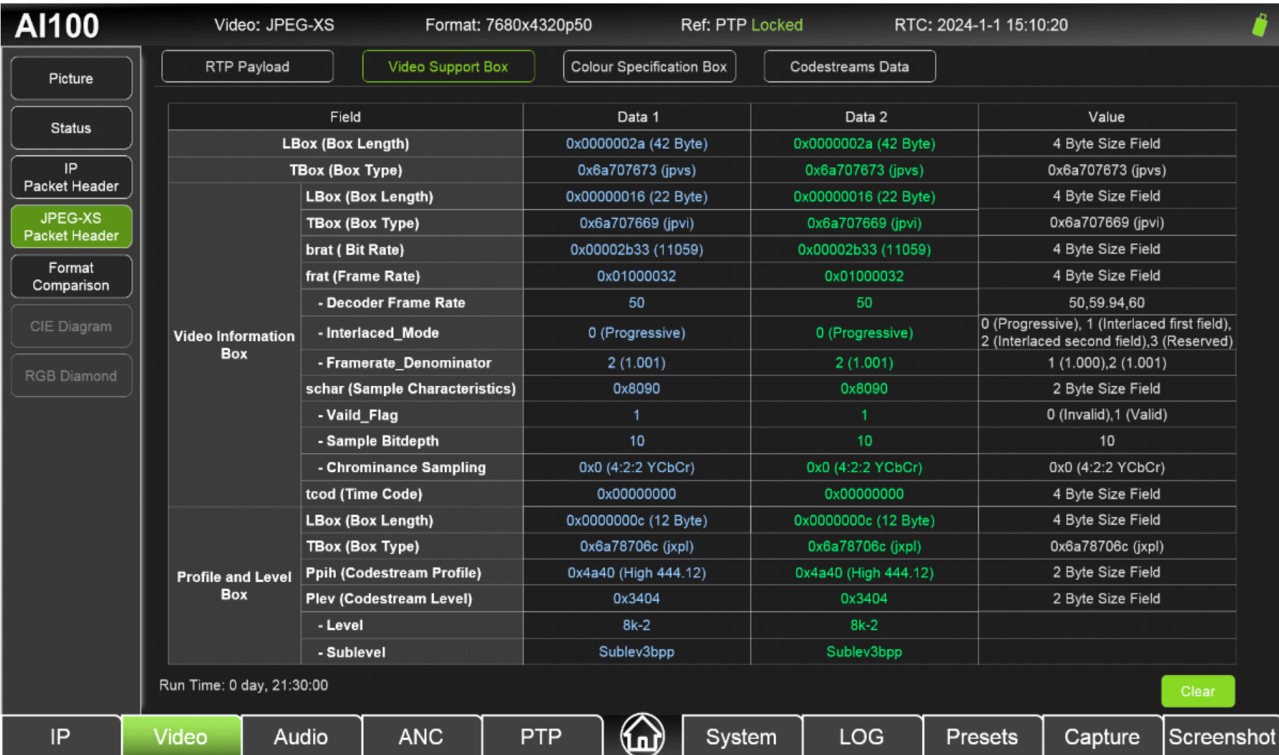

- Status-check and in-depth analysis of JPEG-XS header, code stream, VS(*1) and CS(*2) boxes.
- Ethernet PHY layer analysis
- ST2110-21 data buffer analysis
- ST2022-7 IP data status analysis
- PTP (ST-2059 v2) clock analysis as a grand master client

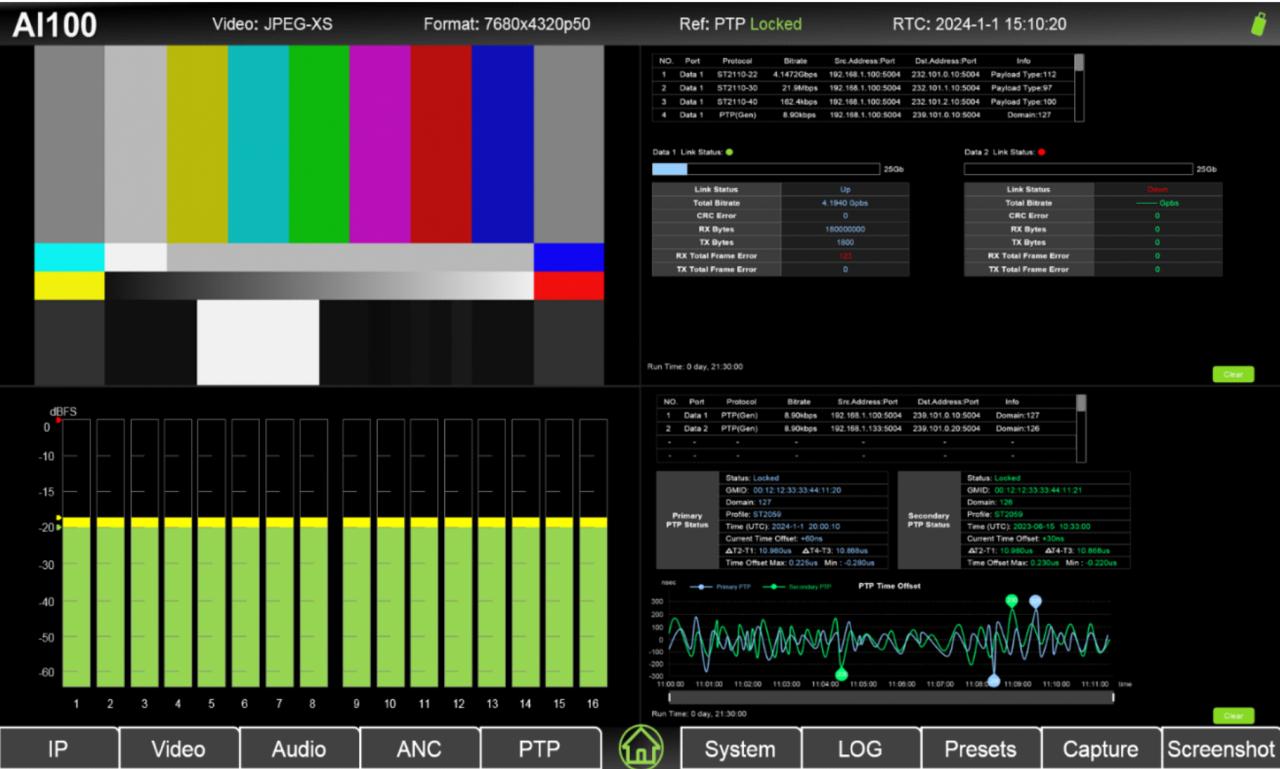

- Visualize the PTP timing accuracy through individual waveforms
- IP stream capture available up to 1GB with the use of an external USB drive
- Support of AMWA NMOS IS-04/-05 for validation and smooth system integration
- Event and alarm logging with SNMP traps generation
- User-friendly graphic interface through keyboard/mouse/display, or web GUI
- Model available in an 8’’ touch panel display 3RU portable or 1RU chassis type form factor
