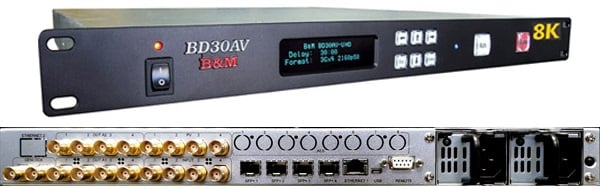

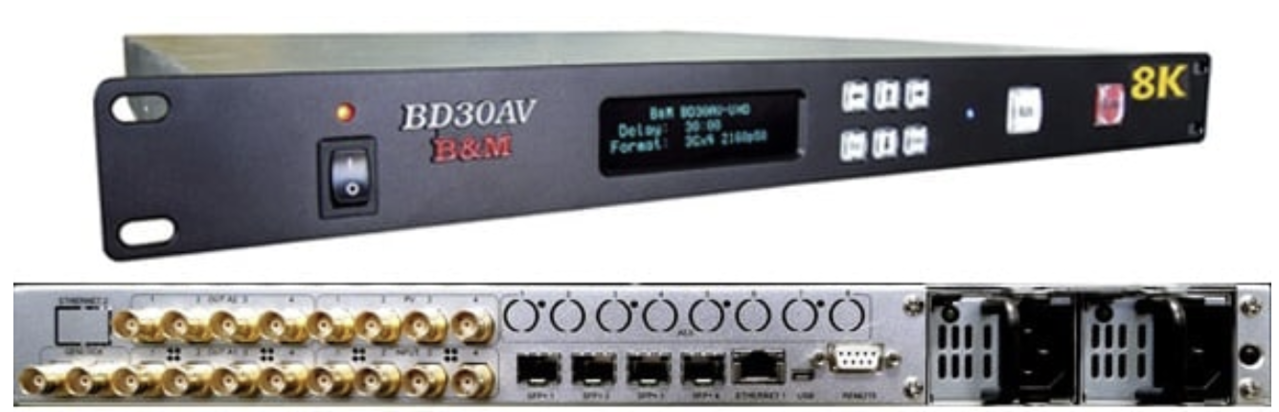

BD30AV-UHD
8K/4K ST2110 IP/SDI Solid State Delay Lines

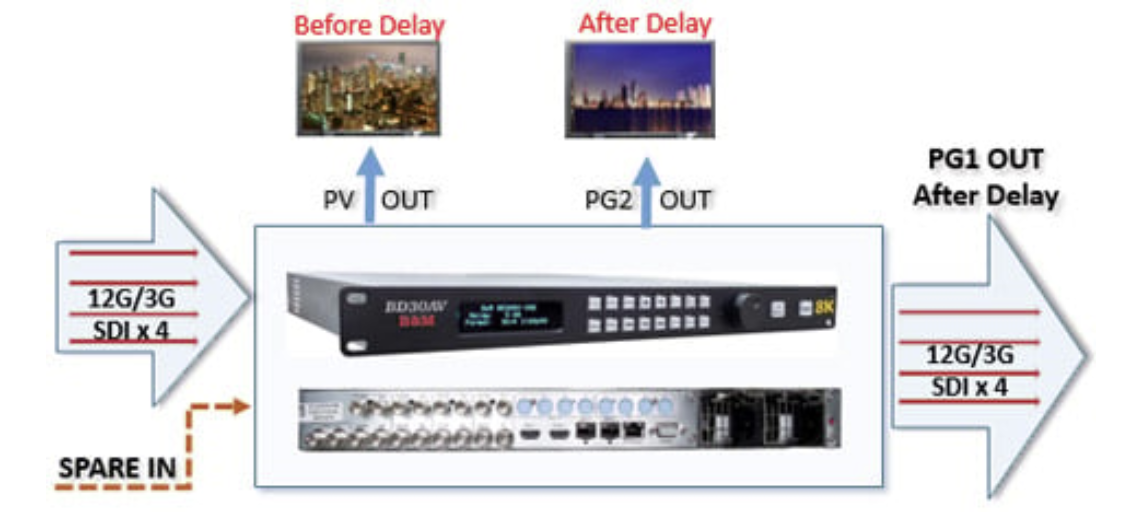

BD30AV-UHD series is the TRUE 8K/4K UHD Digital Video Audio Solid State Delay Lines without any data compression. Compatible with 8K & 4K UHD SDI & ST2110 IP variety of signal standards & formats.
Really the world’s longest delay time, provides up to 180 seconds 8K or 720 seconds 4K UHD SDI or ST2110 IP signals, over 2 hours HD-SDI or ST2110 IP signals in increments of 1 frame steps.
Key Product Features
- Compatible with 8K or 4K HDR UHD SDI signals, selectable 8K 4 x 12G, 4K 12G-SDI, 4 x 3G-SDI inputs & outputs.
- 30 seconds delay time for 8K/4K HDR UHD-SDI as the standard model.
- Minimum 1 frame delay time, and frame-by-frame adjustable.
- Maximum up to 180 seconds 8K delay time, or up to 720 seconds 4K delay time as the option.
- Built-in 4K UHD Frame synchronizer, Gen lockable with BB or Tri-level external reference signal.
- Provides up to 16 channels AES/EBU embedded UHD SDI signal input & output.
- Provide BYPASS feature on the front panel to cancel the delay.
- Provides RJ-45 with SNMP V1.0.
- Optional with audio offset feature to compensate
- The system audio advanced or lip Sync.
