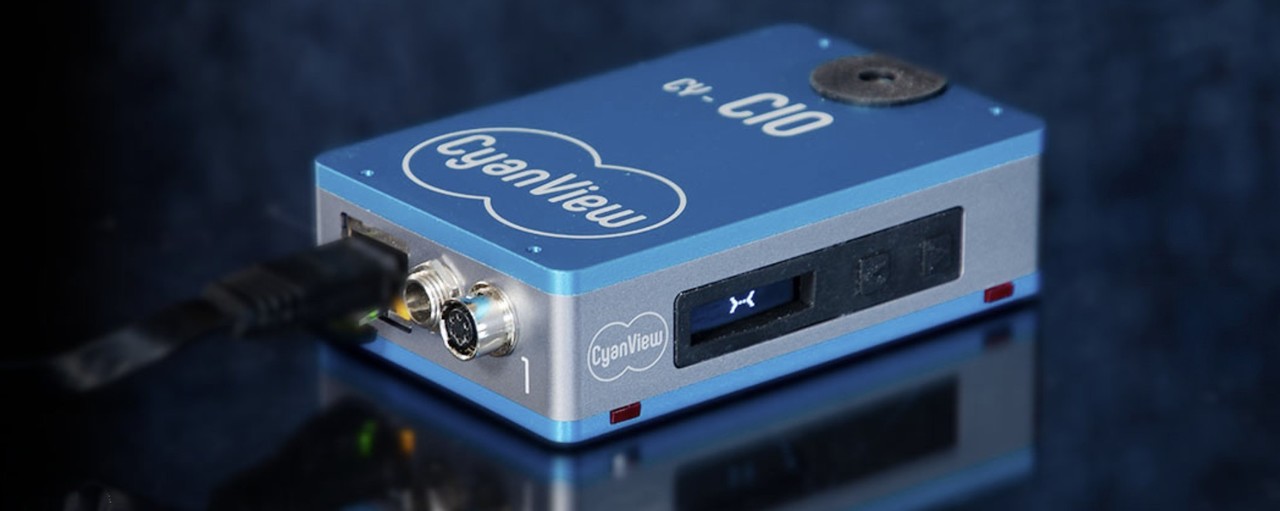

CI0
Camera IP Interface
The broadcast gateway to the IP world. Interfaces all serial or analog broadcast equipment to use seamlessly on current IP workflows.
The Swiss-Army Knife of non-IP Broadcast Equipment
Shade all your cameras over IP

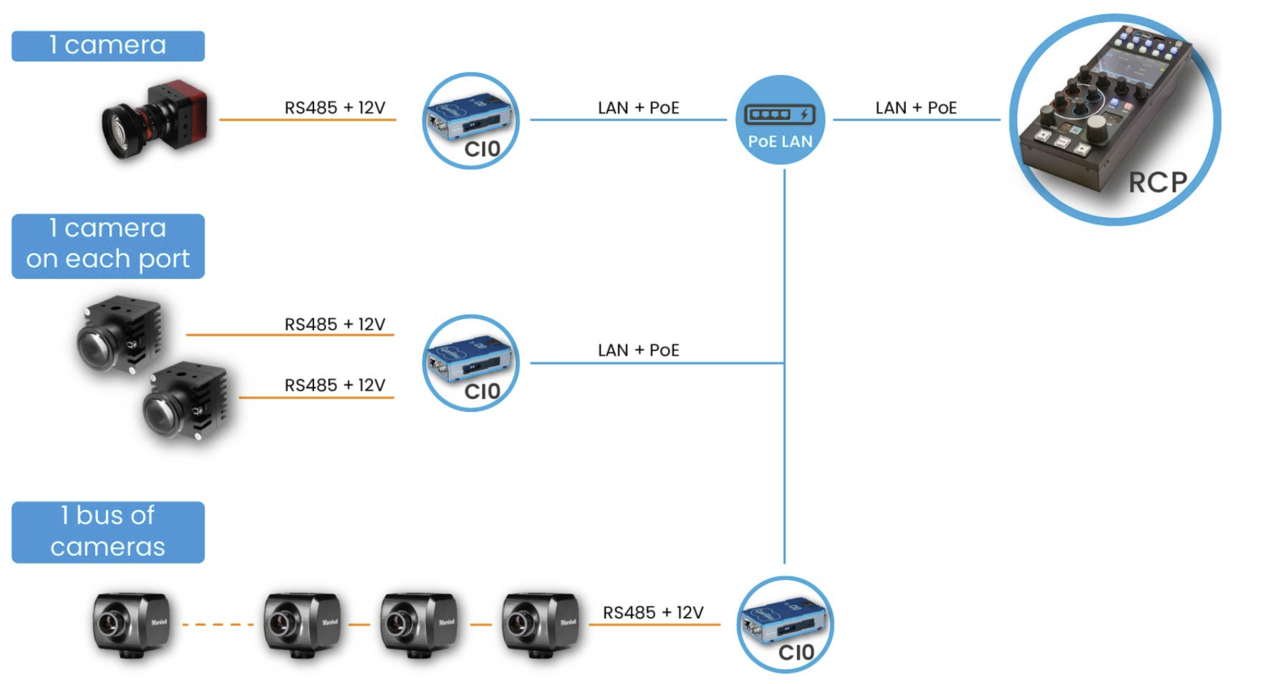

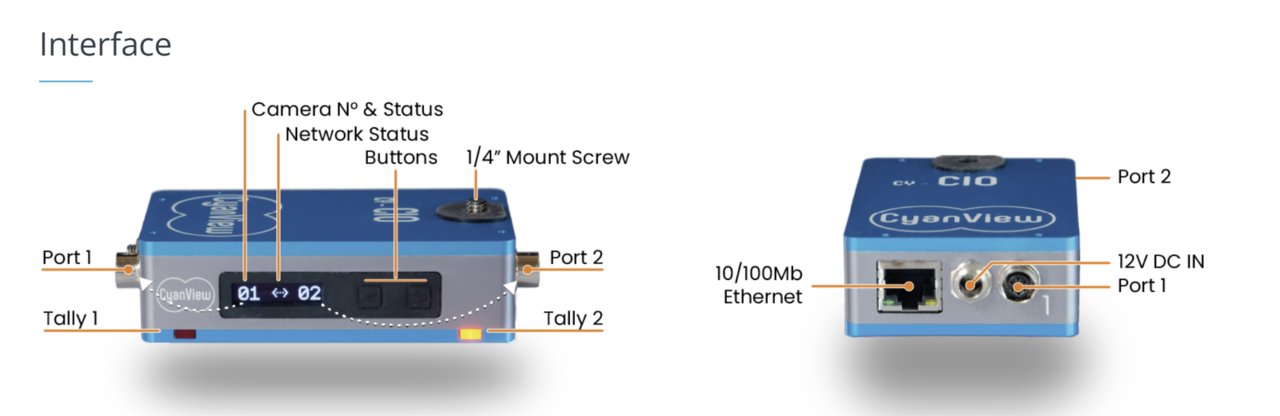

CY-CI0 provides multiple flexible ports to interface serial based or analog based equipment over IP. It makes any non-IP camera or equipment discoverable and usable on IP networks using current workflows. The CI0 features 2 multi-protocol ports compatible with any serial based camera, including Sony legacy and LANC. A wide range of cables are available for most cameras.

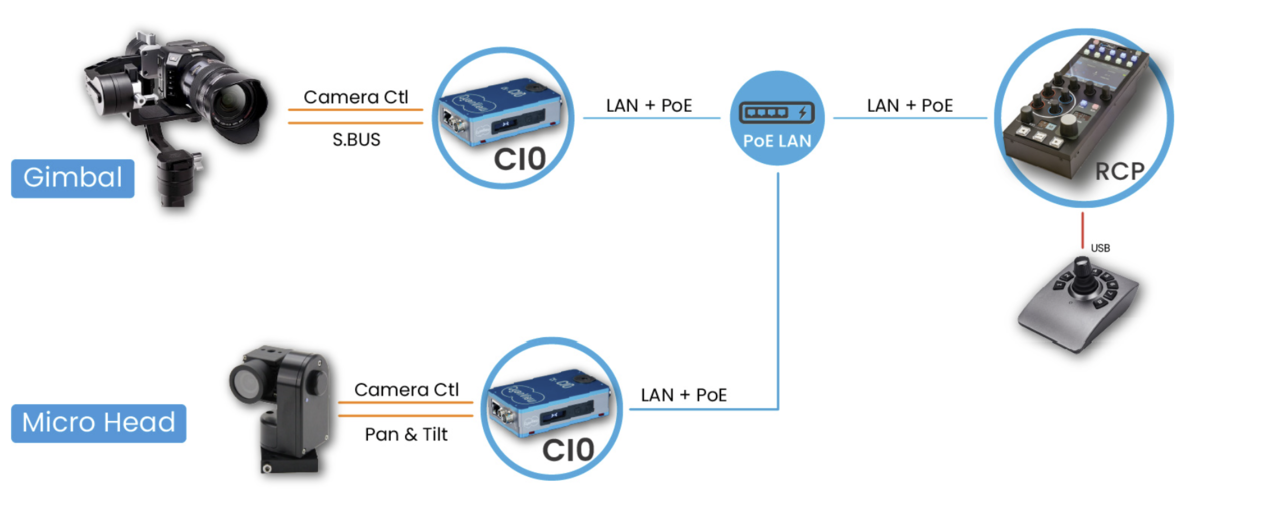

GPIOs are commonly used to convey tally signals and power LEDs. Other protocols are supported as well as they come handy in the specialty camera market, such as S.BUS for interfacing Gimbals.
An optional 3rd port provides even more extension possibilities with some active cables providing features like analog output to directly drive legacy Pan & Tilt analog heads.
Features
- RS232/422/485 - LANC (Sony and compatible) - Sony Legacy (8-pin remote) - Canon Cameras Serial Remote - VISCA (Sony and compatible) - S.BUS for gimbals and servos - B4 lens protocols - Blackmagic SDI Control
|
|
