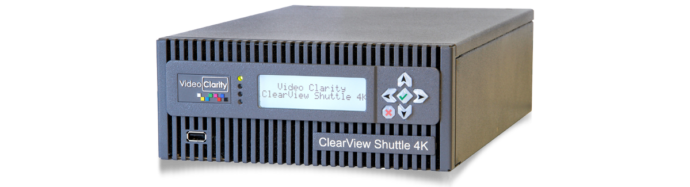

ClearView® Shuttle – 4K Portable
4K, HD, and SD Video and Audio Quality Analyzers Portable, Desktop, and 2RU Rack Mountable
Overview
- Small portable and rack mountable ClearView Shuttle 4K provides resolution and format independent video quality analysis with a full set of 4K, UHD, high definition, and standard definition format recording and comparison playback features
- Perceptual & objective video metrics include VMAF, MS-SSIM on both DMOS and MS-SSIM scales, NIQE, CAMBI, PSNR, and ΔEITP. The JND metric is an option
- The new HDRMAX extensions for highly accurate HDR video quality analysis are included with the VMAF and MS-SSIM metrics
- ColorVideoVDP is the latest new perceptual quality metric applied in ClearView version 9.7
- Audio performance metrics include aFREQ for quality with separate A/V offset (lip sync) measurement, and aPeak for LKFS full audio program loudness test
- ClearView Shuttle 4K system includes two 12G-SDI inputs and two 12G-SDI outputs with one HDMI 2.0 output interface
- Full resolution playback with picture zoom, scroll, and interactive two-sequence comparison view modes such as side-by-side, butterfly, A minus B with color addback for complete visual quality analysis
- Comprehensive media file importer and MPEG network IP stream input decoding/recording
- Dolby® Digital Plus Professional Audio Input Decoder included
- Dolby Vision video format support is an option
- Preloaded VQEG & EBU Video Test Sequences
