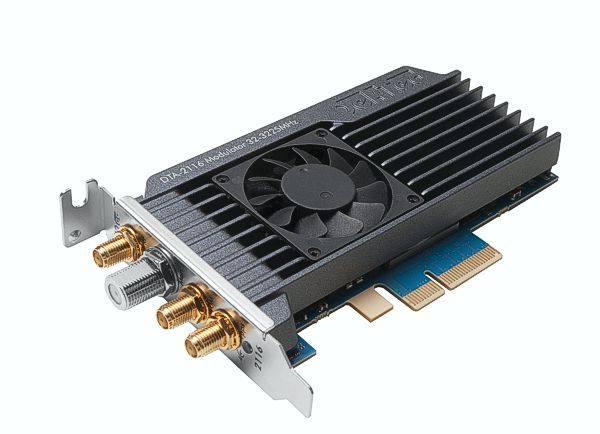

DTA-2116

All-Standard 0-3GHz Modulator for PCIe

Experience DekTec's cutting-edge, all-digital modulator, generating a wide range of cable, satellite or terrestrial standards, or even your own software-defined RF signal. Ideal for digital TV testing, SFN deployment, GPS/GNSS emulation, and beyond.

Features

Versatile: Supports a wide range of cable, terrestrial, and satellite modulation standards. Also generates arbitrary RF waveforms.

All-digital: High-quality, low-noise output signal through SDR and digital upconversion.

Synchronization: Enables SFN and multi-Tx antenna simulations through high-precision syncing to an external clock reference.

Programmable: All parameters are software-adjustable for automation purposes.

80dB: Impressive output level range!

Applications

R&D: Ideal for developing and testing digital TV equipment, as well as experimenting with new RF modulation schemes.

Broadcasting: The high signal quality makes the DTA-2116 an excellent choice for actual broadcasting applications.

Automatic Testing: Automatically cycle through a range of frequencies, levels and modulation parameters, making it useful for factory testing and automated quality control.

Simulation: Simulate GPS, MIMO, or any other multi-transmit antenna configuration.
