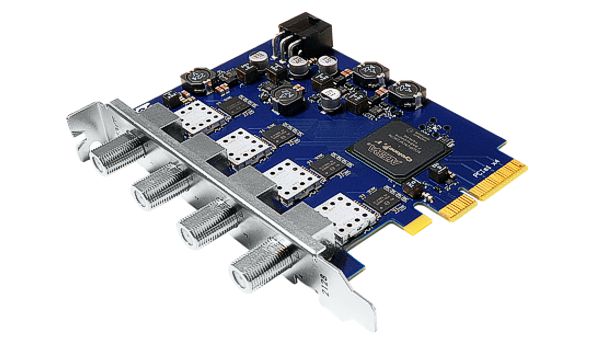

DTA-2128

Octal DVB-S2X Receiver for PCIe

Designed for high-density satellite applications, the DTA-2128 enables simultaneous reception of eight DVB-S2X streams through four L-band inputs, with advanced monitoring and real-time statistics.

Features

Eight independent satellite receivers with access to the full received Transport Stream.

Supports VCM, ACM, MIS (multiple input streams).

Applications

Local redistribution of satellite services over IP.

High-density satellite receiver/decoder.

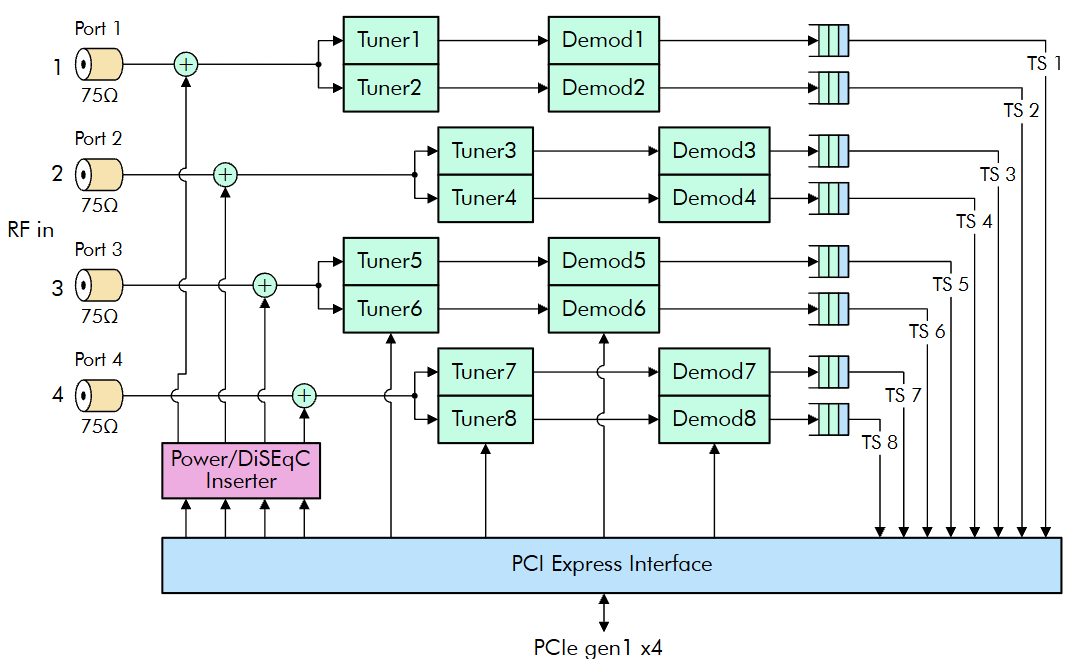

Block Diagram

The DTA-2128 consists of eight wide-band L-band tuners, followed by eight DVB-S2X demodulators.

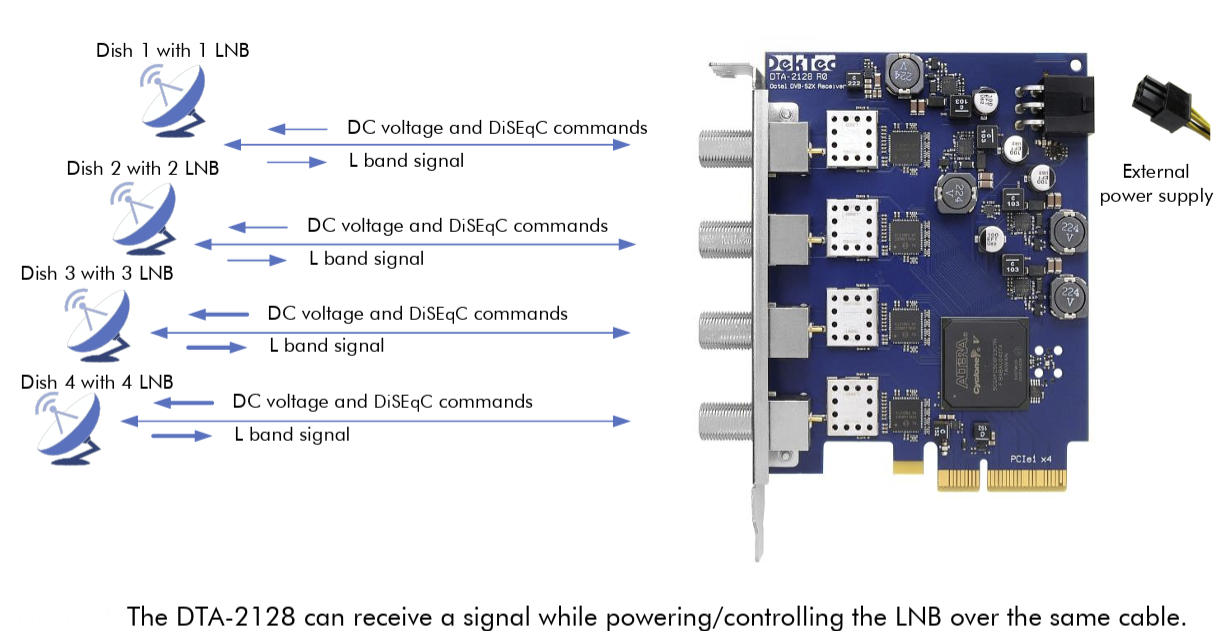

The DTA-2128 includes four 18V/400mA LNB power inserters with overcurrent protection, as well as four DiSEqC version 1.x / 2.x LNB control signal inserters.
