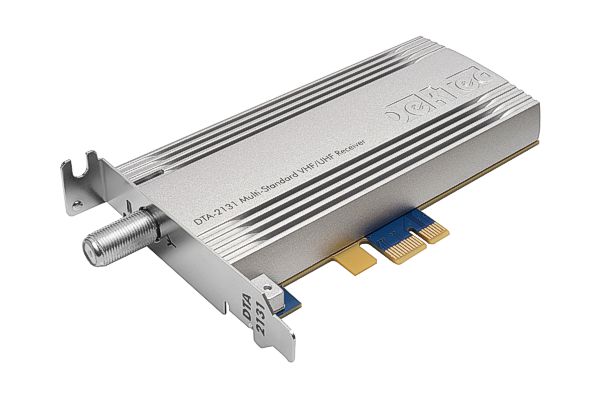

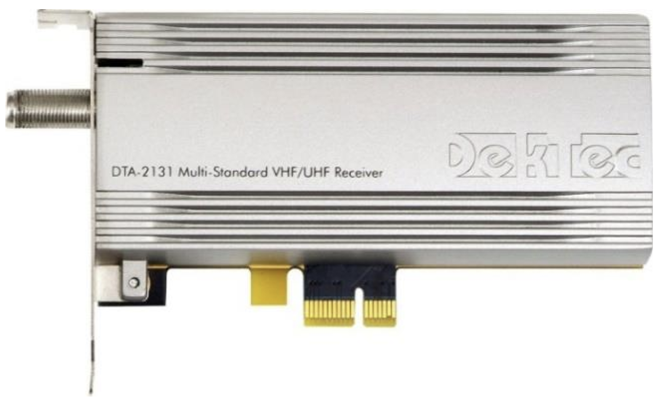

DTA-2131B

Multi-Standard Cable/Terrestrial Receiver for PCIe

High-quality VHF/UHF receiver with support for all popular cable- and terrestrial standards, including ATSC 3.0, DAB, DVB-T2 and ISDB-T. The SDR approach enables full-channel reception (all services), advanced RF measurements and graphs.

Features

VHF/UHF tuner with I/Q demodulator, A-to-D and sample-rate converters, optimized for use with Software Defined Radio (SDR) technology.

SDR enables reception of the entire channel, e.g. outputting all DVB-T2 services in T2-MI, or forwarding ATSC 3.0 packets to IP.

SDR also enables advanced RF measurements including constellation diagrams, MER per OFDM carrier, transfer functions, etc.

Applications

Measurement receiver for ATSC (3.0), DAB+, DVB-C(2), DVB-T(2), ISDB-T and QAM-A/B/C with unique capability to capture/analyze the full stream and advanced RF measurements.

Network monitoring of cable or terrestrial signals with advanced logging.

Special RF applications: I/Q sample recorder; Impulse response measurements for terrestrial networks.
