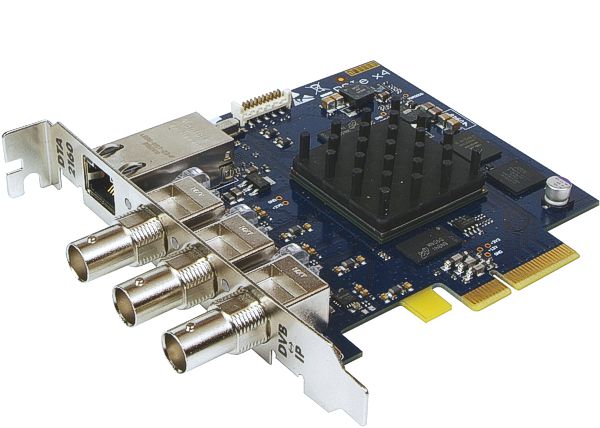

DTA-2160

GigE and 3x ASI Ports for PCIe

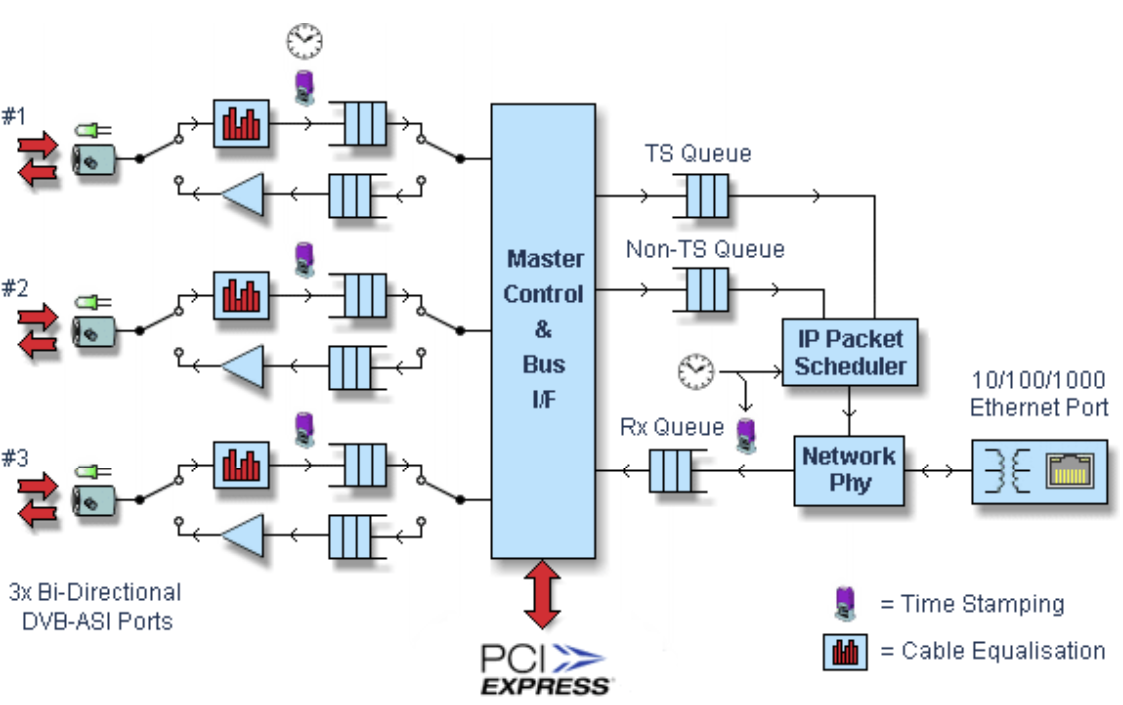

DekTec's Gigabit Ethernet adapter with three ASI/SDI ports, allowing zero-jitter transmission and reception of Transport Streams over IP networks; the additional three ASI ports allow easy conversion between the two interface types.

Features

Simultaneous zero-jitter transmission and reception of multiple Transport Streams over IP networks.

With time-stamping of incoming IP packets for IP jitter analysis and two-dimensional FEC generation for outgoing packets, with programmable D and L, a perfect solution for network optimization.

Three independent software controllable bi-directional BNC ports, operable in ASI or SDI mode, with individual status LEDs.

Applications

IP jitter analysis using DtJitter.

Using the StreamXpert and DtJitter software multiple TS over IP streams can be individually monitored and analyzed.

24/7 monitoring solutions.

In combination with MuxXpert you can real-time multiplex streams.
