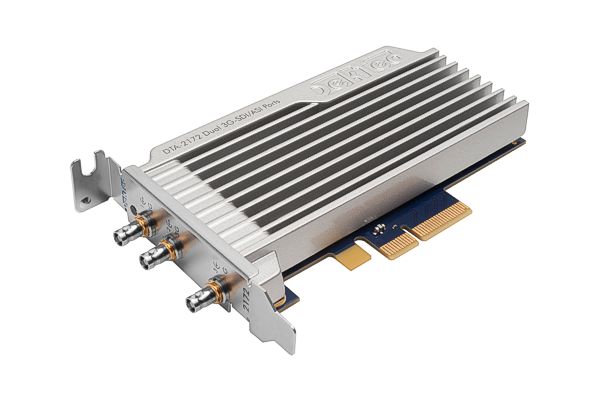

DTA-2172

Dual 3G-SDI/ASI Ports for PCIe

Two general-purpose 3G-SDI bi-directional ports, both ASI capable, with genlock. This card enables you to create broadcast-grade applications for encoding, playout, insertion/extraction, etc. with an easy-to-use programming interface.

Features

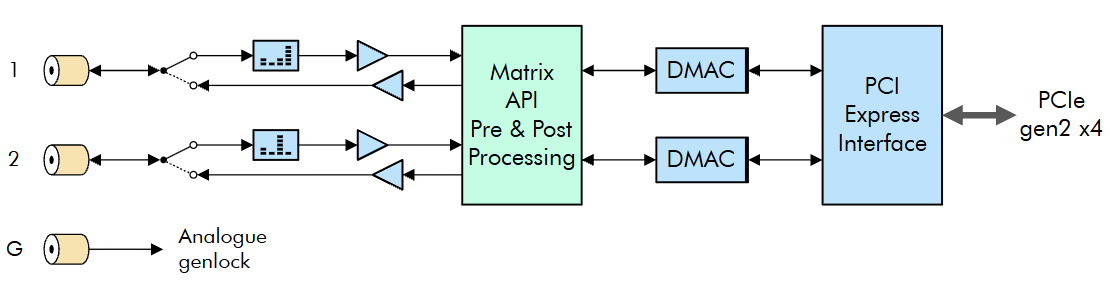

Two general-purpose ASI/SDI ports, each configurable from your application as input or output, and as ASI or SDI (SD/HD/3G-lvl-A/B).

Synchronization of SDI outputs via analogue genlock input, accepting bi- and tri-level sync.

DekTec Matrix API® 2.0 for easy programmatic access to video, audio and ANC data. All SDI symbols in a frame can be read or written.

Applications

Input/output of uncompressed or compressed streams for your software-defined solution:

• Video encoding or decoding;
• Video playout or recording;
• Key- and fill generators;
• Audio insertion or extraction;
• Low-latency subtitle insertion.

Stream station for generation, monitoring and analysis of ASI/SDI streams up to 3G-SDI.
