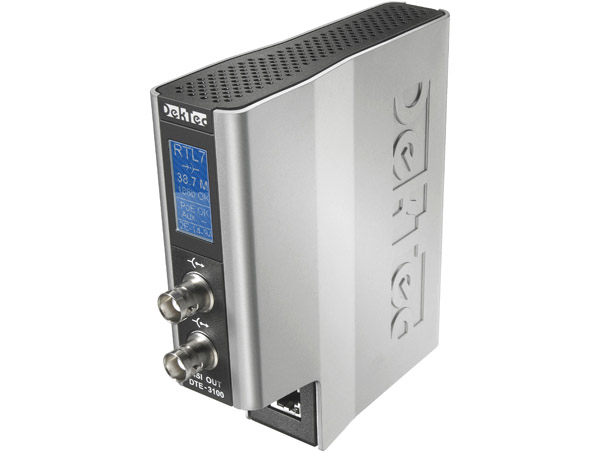

DTE-3100

Standalone IP To ASI Converter

DekTec's standalone power-over-ethernet enabled IP to ASI Converter, allowing zero-jitter transmission of Transport Streams coming from IP networks.

The DTE-3100 is an obsolete product that is no longer in production. It is still supported and available in limited quantities.

Features

Standalone module can either be used as compact autonomous IP to ASI gateway, or as remote I/O device for PC-based applications

Power-over-Ethernet support: No separate power feed required

Advanced time-reconstruction algorithm to overcome IP jitter, with programmable size of jitter-tolerance buffer

Supports IP encapsulation and 2D FEC decoding according to SMPTE 2022-1/2

LCD status display shows device identifier, bitrate, IP/MAC address and status

Applications

Autonomous IP to DVB-ASI gateway.

With DTE-3120: Tunnelling of ASI signals over LAN, WAN or the Internet.

Remote ASI output adapter for server-based data inserters, stream servers, multiplexers and similar systems.
