DVBAnalyzer
Analyzing all aspects of DVB/ATSC/ISDB Transport Streams

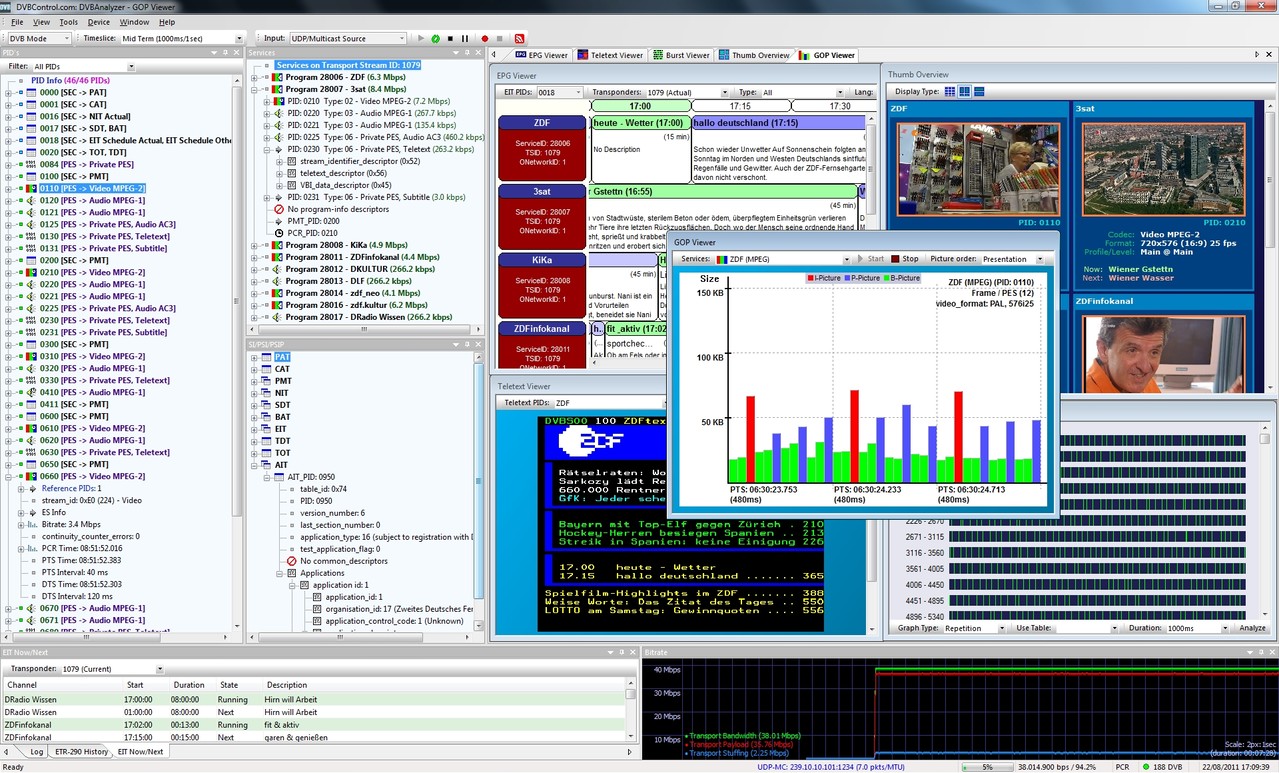

DVBAnalyzer enables powerful analyzing of all aspects of DVB/ATSC/ISDB Transport Streams.
This can be done with high level summary overviews, down to bit interpretation.
By quickly identifying different fields of interest, DVBAnalyzer helps developers, broadcasters, system integrators and field engineers during maintenance, development and testing of equipment, network and services.
Features
Structure and signalling

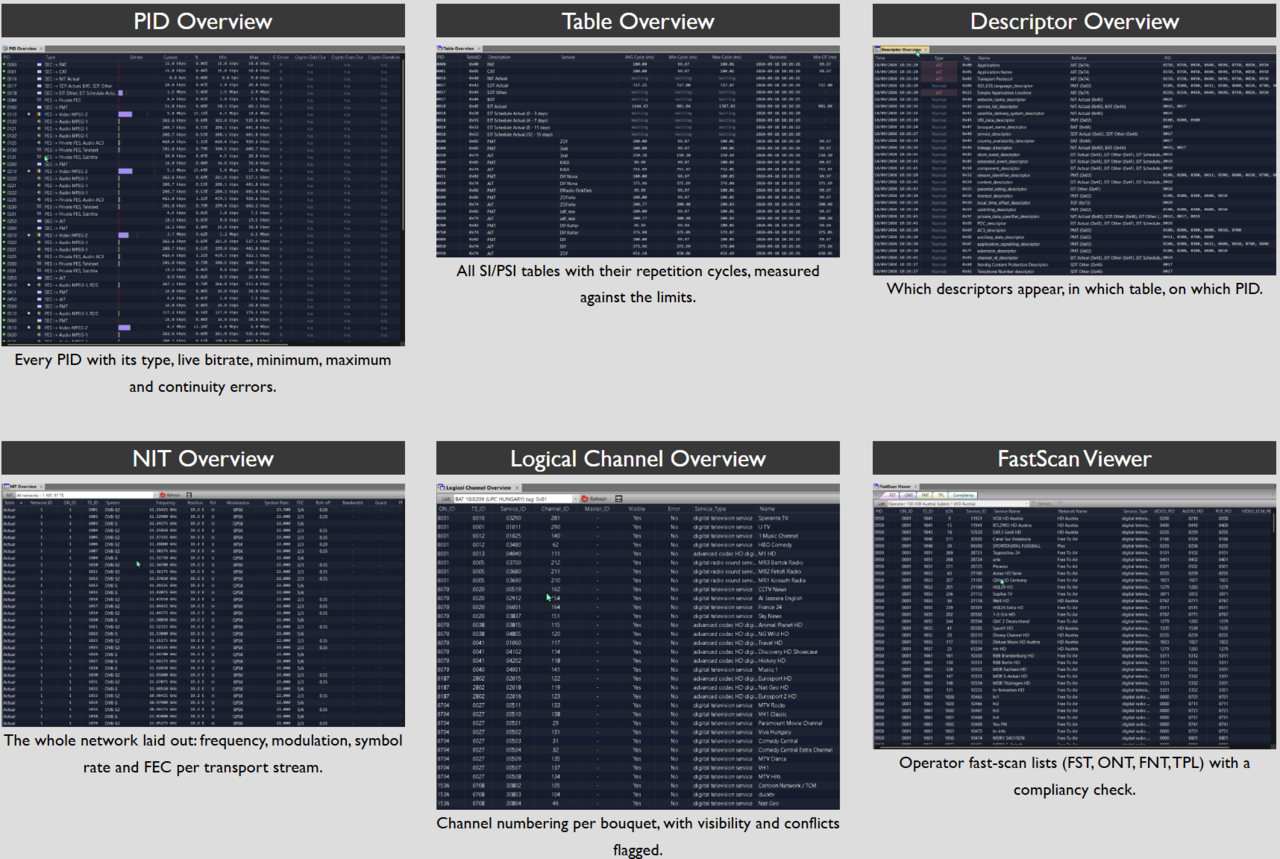

- PID structures
- Service structures

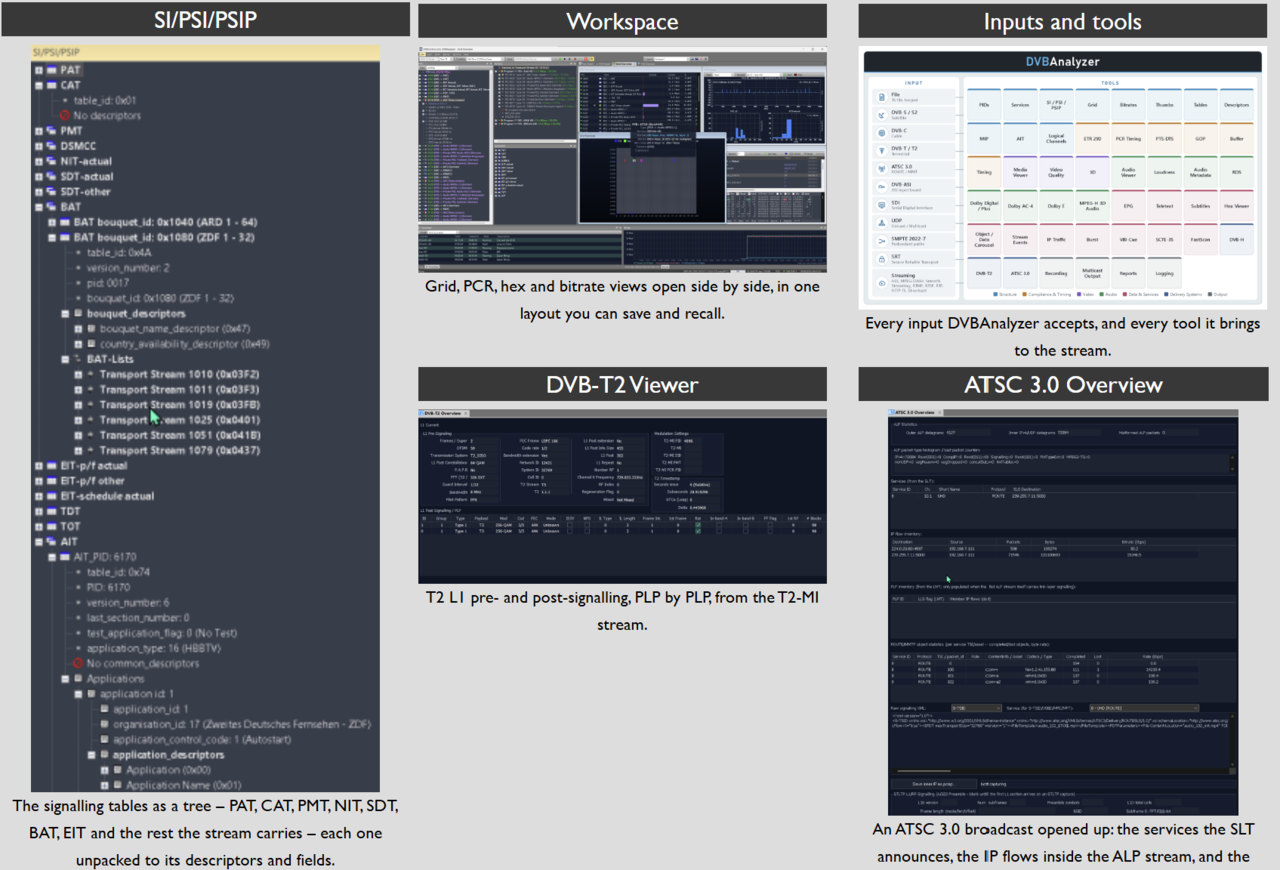

- SI/PSI/PSIP structures
- Grid overview
- Table overview
- Descriptor overview
- NIT overview
- Logical Channel overview
- MIP overview
- AIT viewer
- FastScan viewer
- Private Data
- Hex Viewer
- Filtering

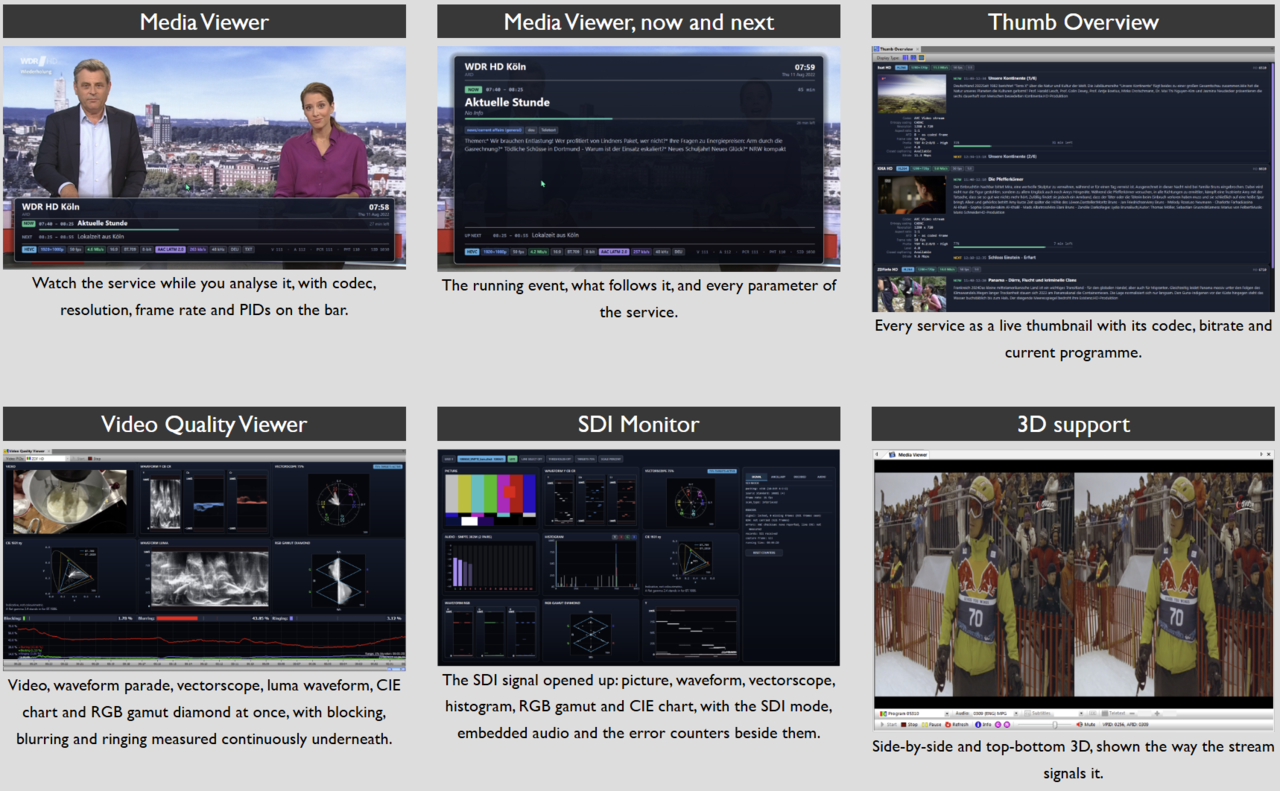

| Video and audio - Media Viewer
- Thumb overview
- Video Quality
- 3D
- Audio measurement
- Loudness measurement (EBU R128, ITU-R BS.1770)
- Audio metadata
- Dolby® Digital and Digital Plus
- Dolby® E and Dolby AC-4
- MPEG-H 3D Audio
|

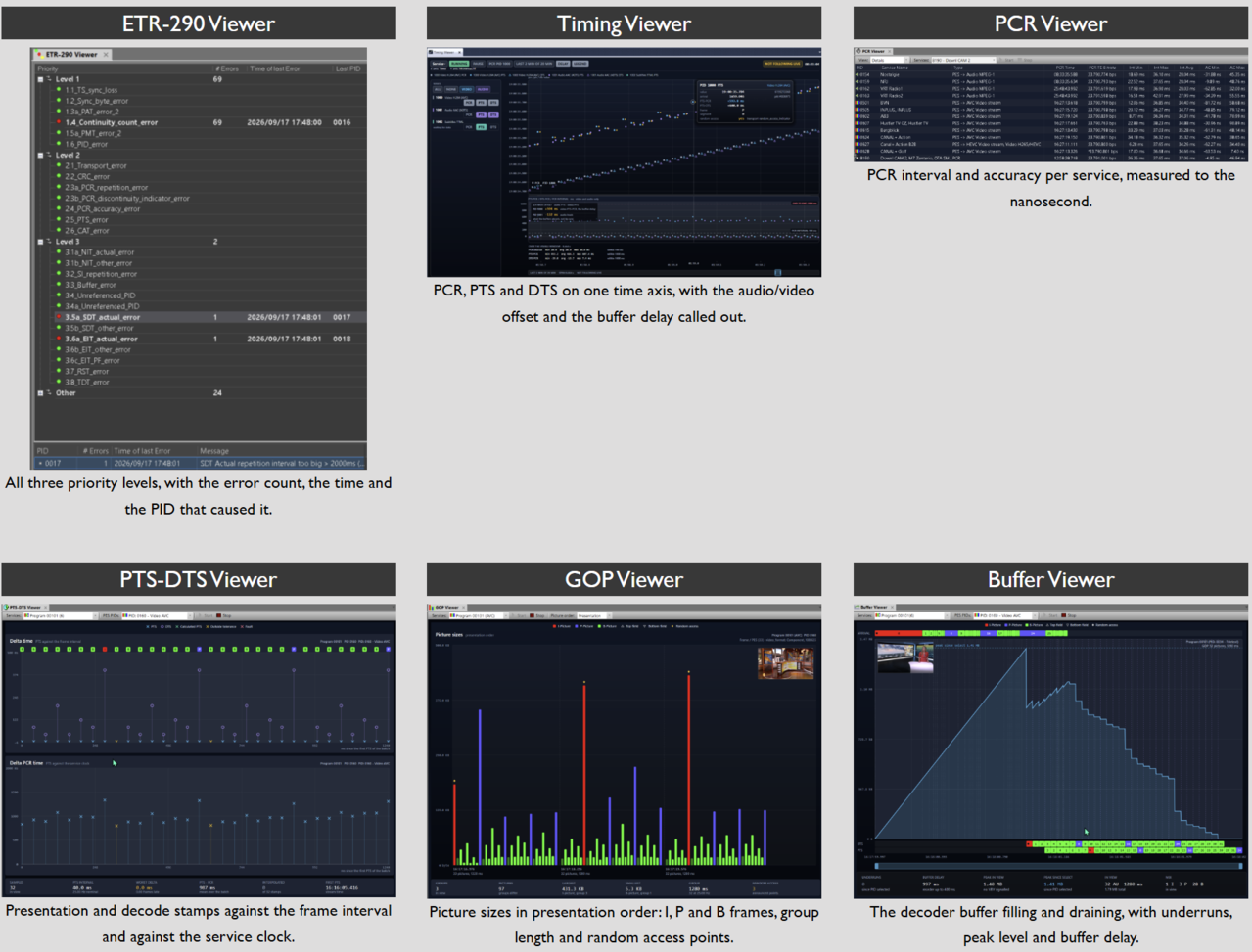

Compliance, timing and bitrate - ETR-290 compliance
- PCR timing
- PTS-DTS timing
- Timing Viewer

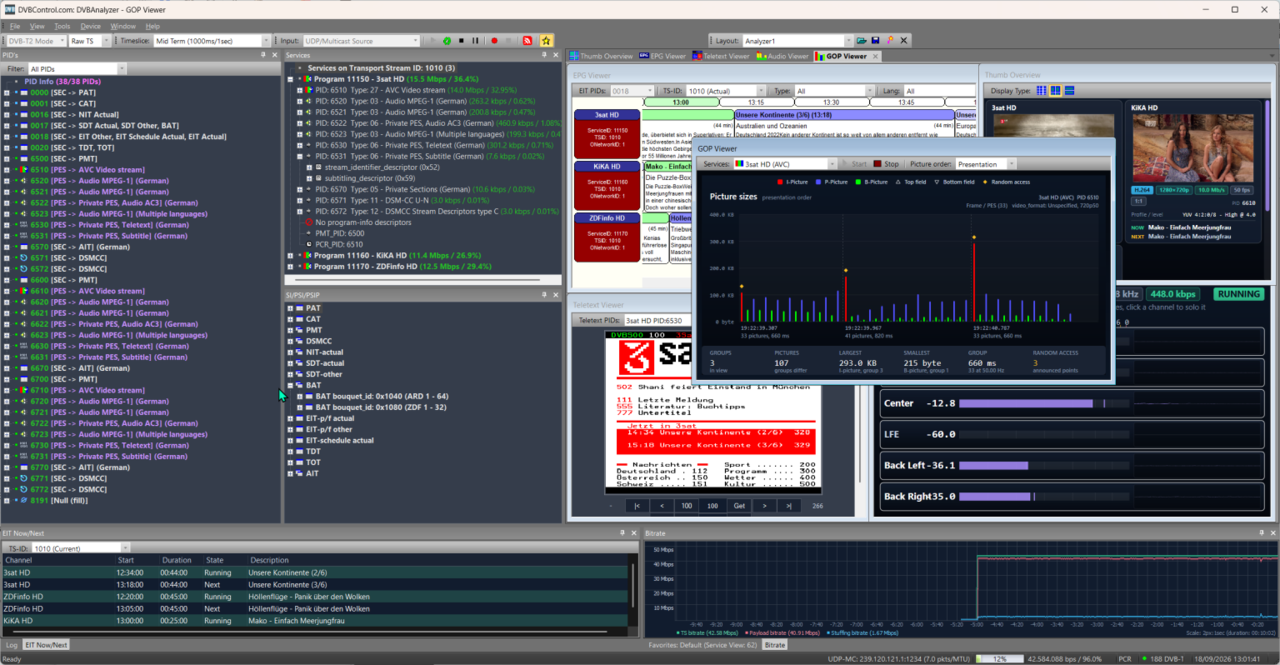

- GOP structures
- Buffer behaviour
- Bitrate measurement
- Bitrate distribution
- Burst Viewer
- Logging and SNMP traps

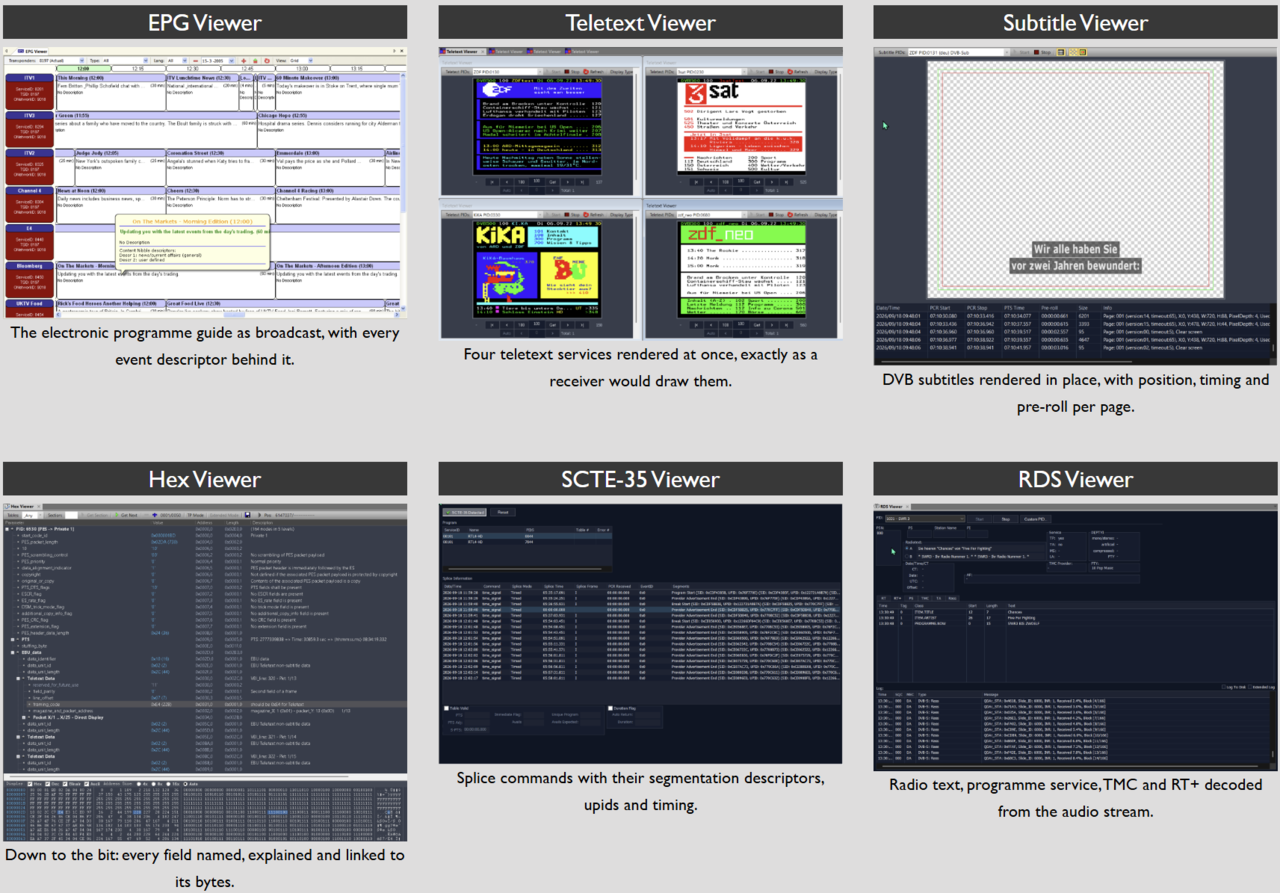

| Data and services - EPG
- Teletext
- Subtitling (DVB, TTML, CEA-708)
- RDS
- Object/Data Carousels
- DSM-CC Stream Events
- SCTE-35 Viewer
- VBI-Cue Viewer
- IP Traffic
- DVB-T2 Viewer
- DVB-H analysing
- ATSC 3.0 overview
- UDP Multicast output

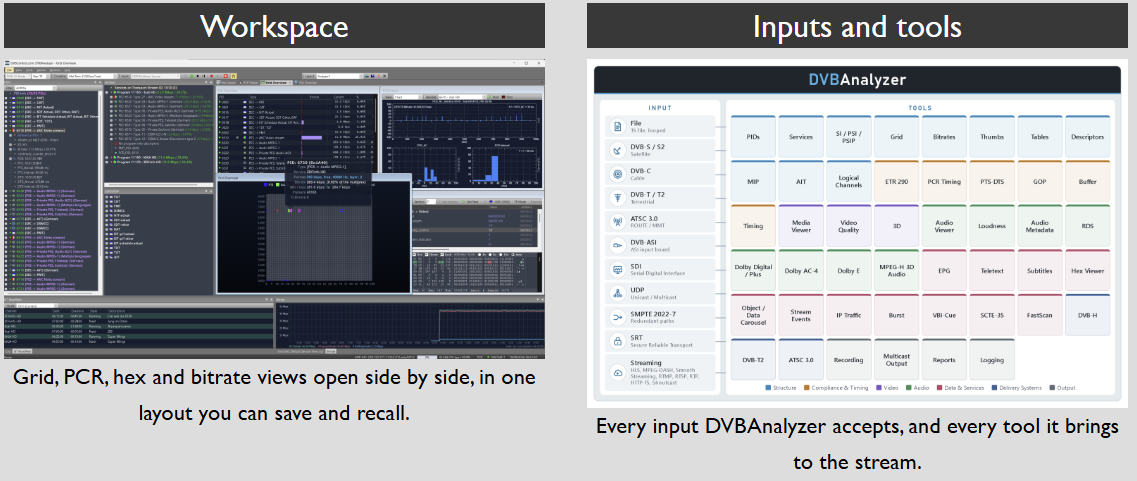

- Layout Manager, multiple views
- Plugins and Preferences
|
Supported codecs
Recognised in the PID and service trees, played by the Media Viewer, and carried through the video and audio tools.
Video - MPEG-1 Video
- MPEG-2 Video (H.262)
- AVC (H.264)
- HEVC (H.265), up to 4K HDR
- VVC (H.266)
- AV1
- VP9
- VC-1 (SMPTE 421M)
- AVS
- JPEG 2000
| Audio - MPEG-1/2 Audio (Layer I, II, III)
- AAC, HE-AAC (ADTS and LATM)
- Dolby® Digital (AC-3)
- Dolby® Digital Plus (E-AC-3)
- Dolby® AC-4
- Dolby® E
- MPEG-H 3D Audio
- DTS
- AES3 (SMPTE 302M, PCM)
- DAB, DAB+
|
| The Dolby formats require their license option. |
Input Support
File, DVB-ASI, DVB-C, DVB-T/T2, DVB-S/S2, DVB-H, ATSC 3.0, Unicast, Multicast, SMPTE 2022-7 (redundant network paths), SRT, HTTP-TS, Shoutcast, Live OTT Streaming (RTSP/RTMP/RTP/HLS/MPEG-DASH/Smooth Streaming) and SDI/NDI.
