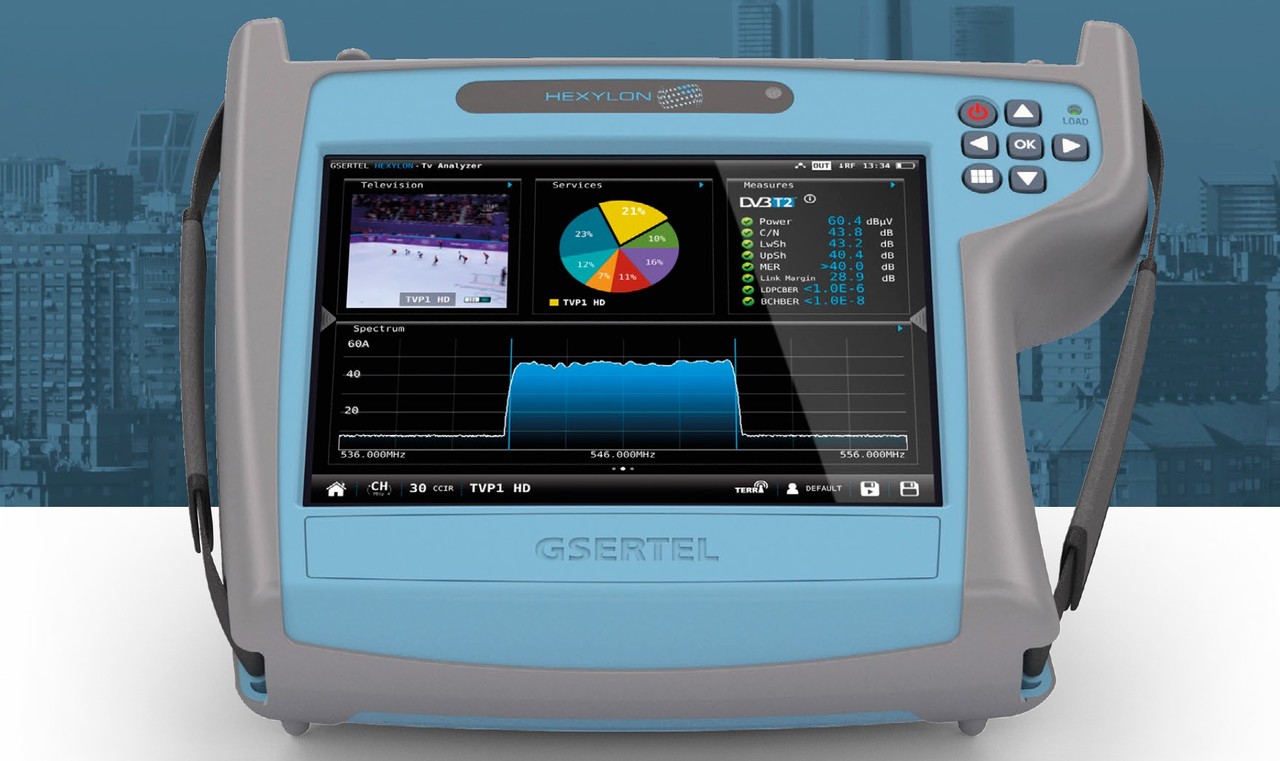

HEXYLON
MULTISTANDARD METER
ATSC 1.0/ATSC 3.0, DVB- T/T2, ISDB-T, DVB-S/S2/S2X, DVB-C, QAM-B, TSoIP, FM, DAB/DAB+
RF ANALYSIS

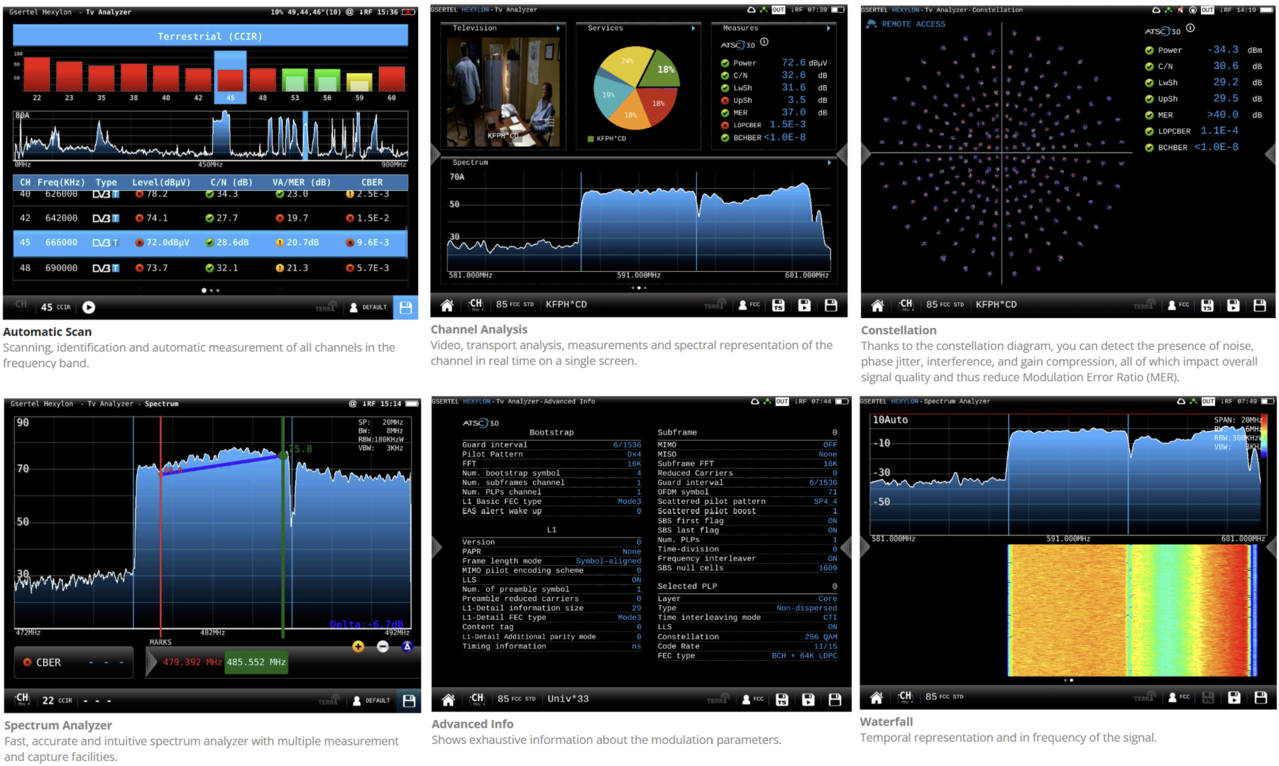

- Ultra fast scan and automatic measurements of all the TV & Radio channels
- Ultrafast autolock: HEXYLON locks any input signal without needing to setup any parameter
- Signal quality measures according to standard: Power, C/N, MER, MER by carrier graphic representation, BER, Constellation,... As well as advanced FM measures
- Ultrafast spectrum analyzer (sweep<10ms) from 5MHz to 3.3 GHz, with configurable resolution filters between 300 Hz and 6.4 MHz
- Advanced echoes analysis (DVB-T/T2, ISDB-T/Tb, DAB/DAB+): Pre and Post Echoes. Allows to measure echoes out of the guard interval up to 1148 us, thanks to the PDP v2 feature
TS ANALYSIS
- Alarm monitoring according to ETR 101 290 (Pri1, Pri2, Pri3)
- Bitrate analysis per service: audio, video, data
- Treeview with table decoding: PSI and SI, EPG demodulation
- T2-MI Analysis over ASI or IP
- Real time analysis of the Transport Stream, showing services and tables
AND MUCH MORE...
- Reporting engine (pdf, csv,...)
- 4G and 5G interferences detection and filter simulation
- Waterfall
- Satellite automatic identification
- Video/audio decoding: Display in 8” high resolution screen of analog and digital TV video (MPEG2, MPEG4 Full HD, HEVC 720p 25 fps, HEVC 1080p screenshots, HEVC 4K)
- Extended working band for DVB-T/T2 (from 20MHz to 1.5GHz)
- 2.4GHz and 5GHz Wifi-Analyser
- Audio/video streaming
- TS and RF recording
