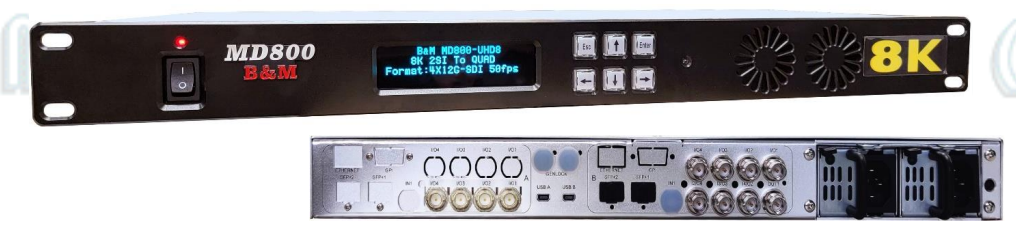

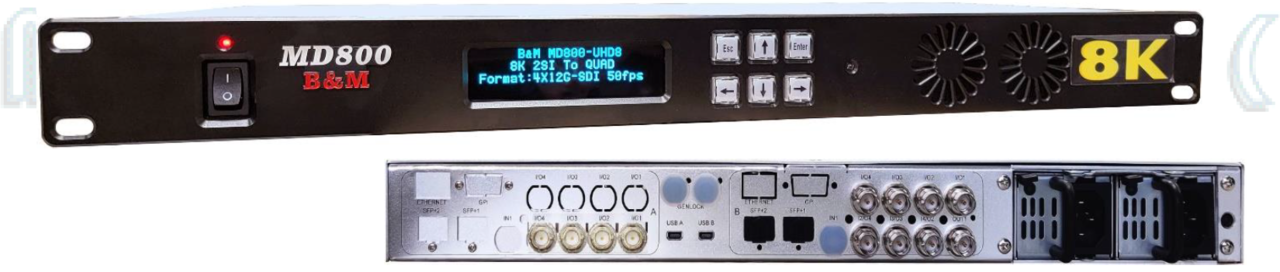

MD800-UHD8

FULL 8K 2SI / SQD Converter, Signal Generator, Processor,8K/4K Up / Down Cross Converter

MD800-UHD8 Series designed on the high density hardware platform built-in TRUE 8K 2SI FULL frame synchronizer with very friendly features of the video noise reducer, the color filters and the video signal enhancer.

MD800-UHD8 series products provide bi-direction converters between FULL 8K 2SI and SQD (Quads) 4x12G-SDI signals, with the flexible functions to customized 8K/4K/3G/HD UP or DOWN cross converters,  integrated 8K/4K signal generators output with up to 32 channels digital AES audio embedded.

MD800-UHD8 series products offer the high quality HDR/SDR and 3D LUT converter as the optional features. The additional 8K/4K un-compressed ST2110, or JPEG-XS format ST2110-22 IP signal IN/OUT features expands and perfect 8K or 4K broadcasting, editing and transmission systems.

Features

• Compatible with 8K/4K/3G/HD SDI signal formats, selectable 8K 2SI or 8K SQD 4x12G-SDI, 4K 12G-SDI, QL 4x3G-SDI or HD-SDI inputs & outputs.
• Built-in FULL frame 8K/4K UHD/HD frame synchronizer, Gen lockable.
• Supports and transparent BT2100, BT2020 and HDR video color format.
• Provides up to 16 channels AES/EBU embedded 8K/4K UHD-SDI signal inputs & outputs.
• Up to 32 channels AES/EBU embedded features as the additional options.

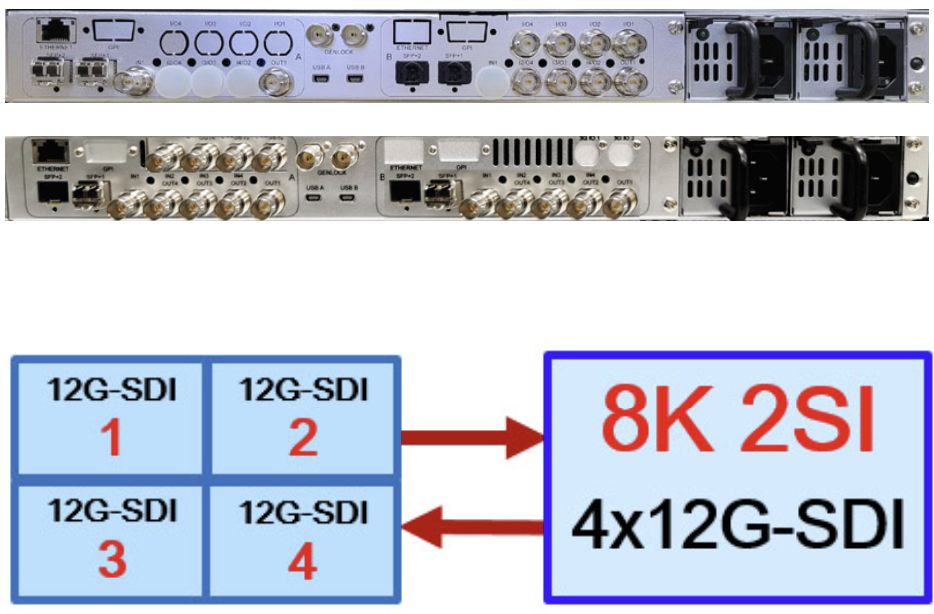

• Provides Bi-Direction conversion between 8K 2SI and SQD signal format, customize the converter mode.
• Provides 8K signal DOWN convert to 4K or 3G/HD signal format feature.
• Provides 4K signal UP convert to 8K 2SI or SQD signal format feature.
• Provides 8K/4K signal generator feature.
• Provides 8K/4K/3G/HD video signal enhancer & noise reducer feature.
• Provides audio offset feature to compensate the system audio advanced and lip Sync. problems.
