RTM 4K – Real-Time Quality Monitoring for 4K
4K or multi-channel HD with 12G-SDI Interfaces
Optional 25G IP Interface for ST 2110 Networks, and HDMI Input Interface Option
Overview
- RTM 4K system for 4K, UHD, HD, and SD testing provides full reference objective audio and video quality analysis measurements in real-time
- 4K and UHD formats are tested with baseband SDI or decoded from MPEG IP with two optional interfaces for ST 2110 networks and HDMI inputs
- Multiple instances of HD or SD video may be tested in combination with Gigabit IP and all other interfaces
- Threshold based recording of source and test inputs for automatic capture of low quality events based on each test type
- Video metrics include MS-SSIM on native and DMOS scales and PSNR with one metric per test instance and time period
- Audio is measured for quality, with A/V offset “lip sync”, and standards based loudness measurement
- A single 4K test instance or multiple HD and SD instances of RTM full reference quality tests may be applied with each system
- Control is via RTM desktop GUI, command line API, or REST API
- RTM Manager is also included for full set up and control via web browser
- Test score graphs are generated in RTM Log Grapher and RTM Manager during testing

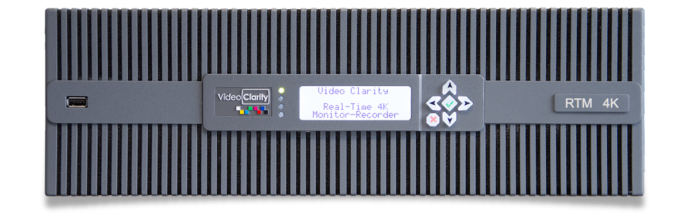

- RTM 4K is a 3RU rack mountable system for machine room or deskside applications
