RTM – Real-Time Quality Monitoring

with Four 3G-SDI or Eight 3G-SDI Interfaces

Overview

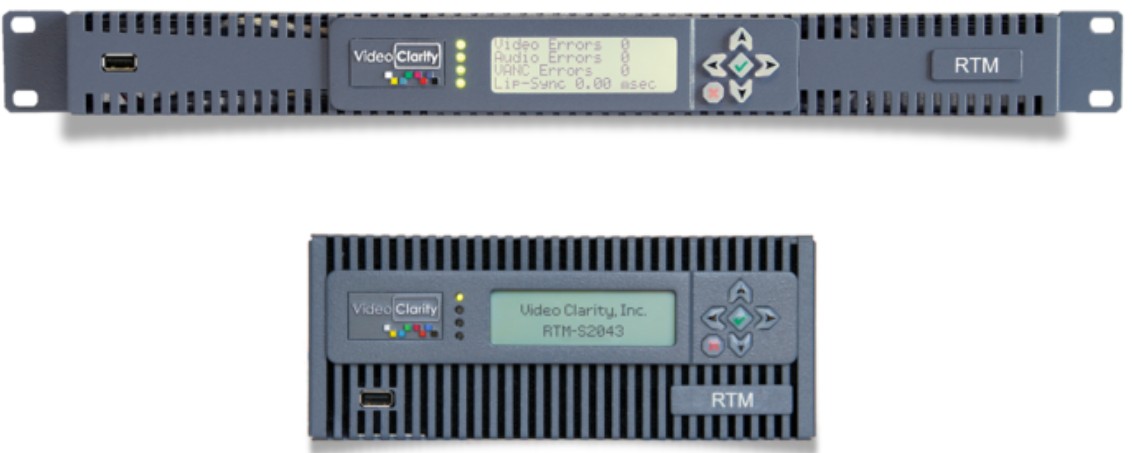

• RTM rack mountable and portable systems provide a compact multi-channel test solution for several applications
• Multi-instance full reference testing for high or standard definition testing providing objective audio and video quality analysis and measurements in real-time
• Threshold based recording of source and test inputs for automatic capture of low quality events based on each test type
• IP interfaces for MPEG stream input pair with multiple SDI input configurations
• Video metrics include MS-SSIM on native and DMOS scales and PSNR
• Audio is measured for quality up to 16 channels, with A/V offset “lip sync”, and standards based loudness measurement
• Up to four instances of RTM full reference HD or SD format quality tests may be applied with each system
• Control is via RTM desktop GUI, command line API, or REST API
• RTM Manager is also included for full set up and control via web browser
• Test score graphs are generated in RTM Log Grapher and RTM Manager during or after quality testing
