S221-UHD Series
8K 4x12G-SDI or 4K 12G-SDI, or ST2110 IP Switcher

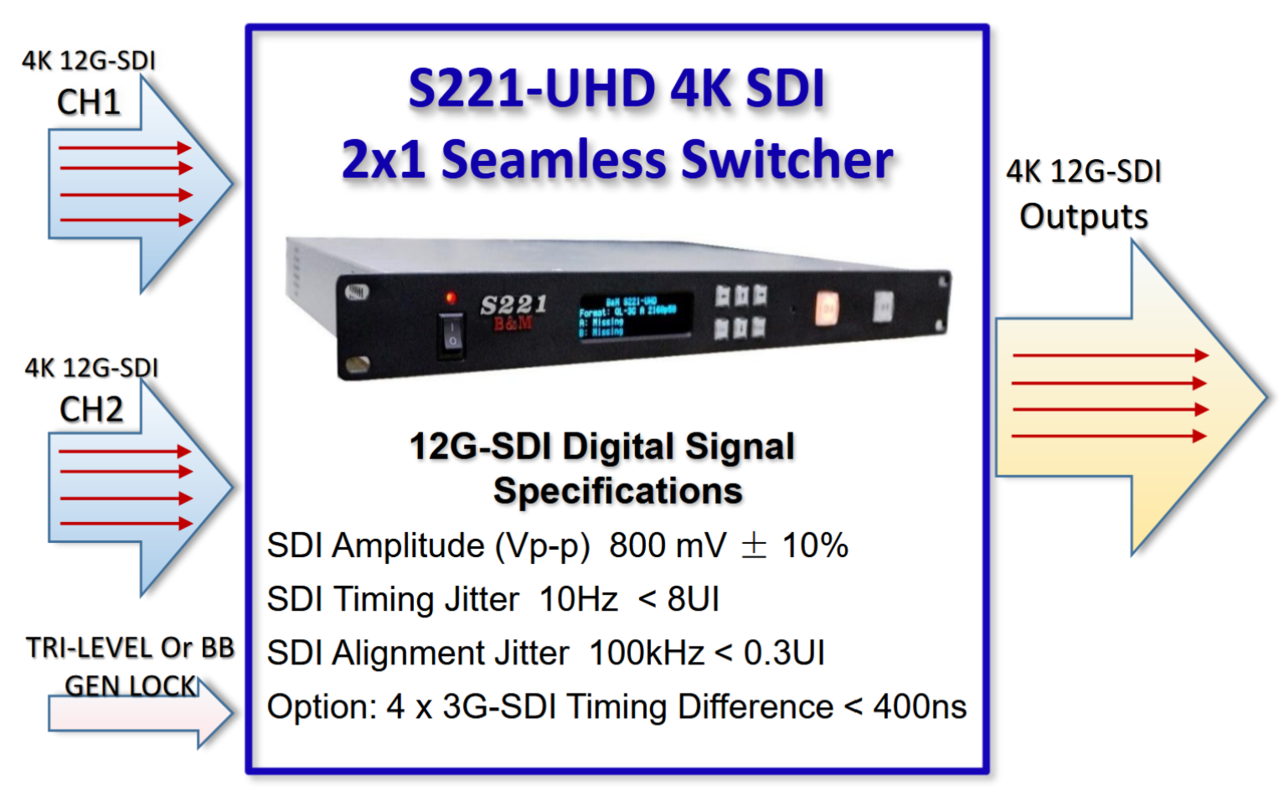

S221-UHD series FULL 8K or 4K UHD SDI or ST2110 IP seamless switcher provides 2 channels 4x12G or 12G-SDI signals or ST2110 IP signals inputs, 1 channel 4x12G or 12G-SDI or ST2110 IP signal synchronized switched output.
Tight integrated in a single rack mountable chassis supports multiple UHD video formats and built-in 2 channels 4K UHD frame synchronizer.
S221-UHD series 8K or 4K UHD switcher meets all of the customers’ 8K and 4K UHD SDI or IP production applications, whatever 8K or 4K UHD environment - broadcast studios, production, sports, entertainment, live events & conference.
Features

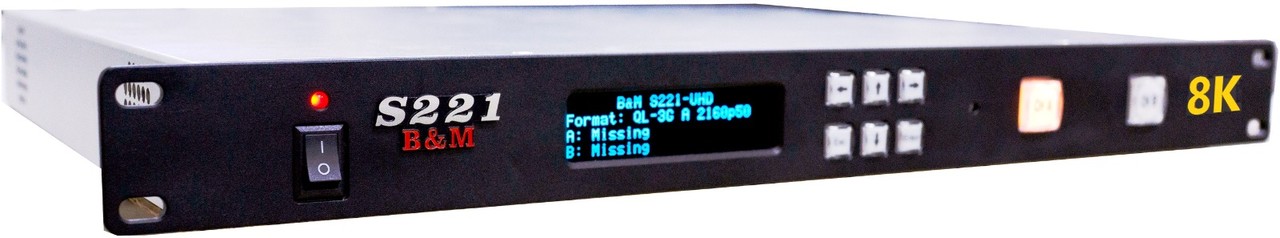

- S221-UHD8 8K model provides FULL 8K 4x12G-SDI Clean Cut output.
- S221-UHD8 8K model provides 2 channels 8K 4x12G-SDI signals inputs, 1 channel 8K 4x12G-SDI signal output.
- S221-UHD4 4K series synchronized switcher provides 8x2 and 4x1 models to the different 4K 12G-SDI system equirement.
- S221-UHD4 4K 2x1 model provides FULL 4K 12G-SDI or 4x3G-SDI synchronized seamless switcher.
- Compatible with multiple 4K UHD SDI 12G/6G/3G/1.5G video signals.
- Built-in 2 channels 4K UHD frame synchronizer.
- Tri-Level or BB external reference signal, Gen Lockable.
- Transparent configuration for 4K UHD productions.
- Optional for un-compressed ST2110 IP signals with SFP28 or QSFP28 I/Os.
- S221-UHD4 4K 2x1 model provides 2 channels 4K 12G-SDI or 4x3G-SDI signals inputs, 1 channel 4K 12G-SDI or 4x3G-SDI signal synchronized switched output.
- RS422 & RJ-45 remote control port, supports SNMP V1.0 protocol.
- Redundant hot swappable power supplies.
