T2Xpert

DVB-T2 Analysis Software

Real-time DVB-T2 analyzer software with advanced RF measurements in detailed graphs and displaying of all T2 signaling information.

Features single-PLP and multi-PLP reception, T2-Lite and T2-MI output over IP.

Features

Real-time DVB-T2 analysis software for use with DTA-2131B (PCIe) and DTU-331 RF probes.

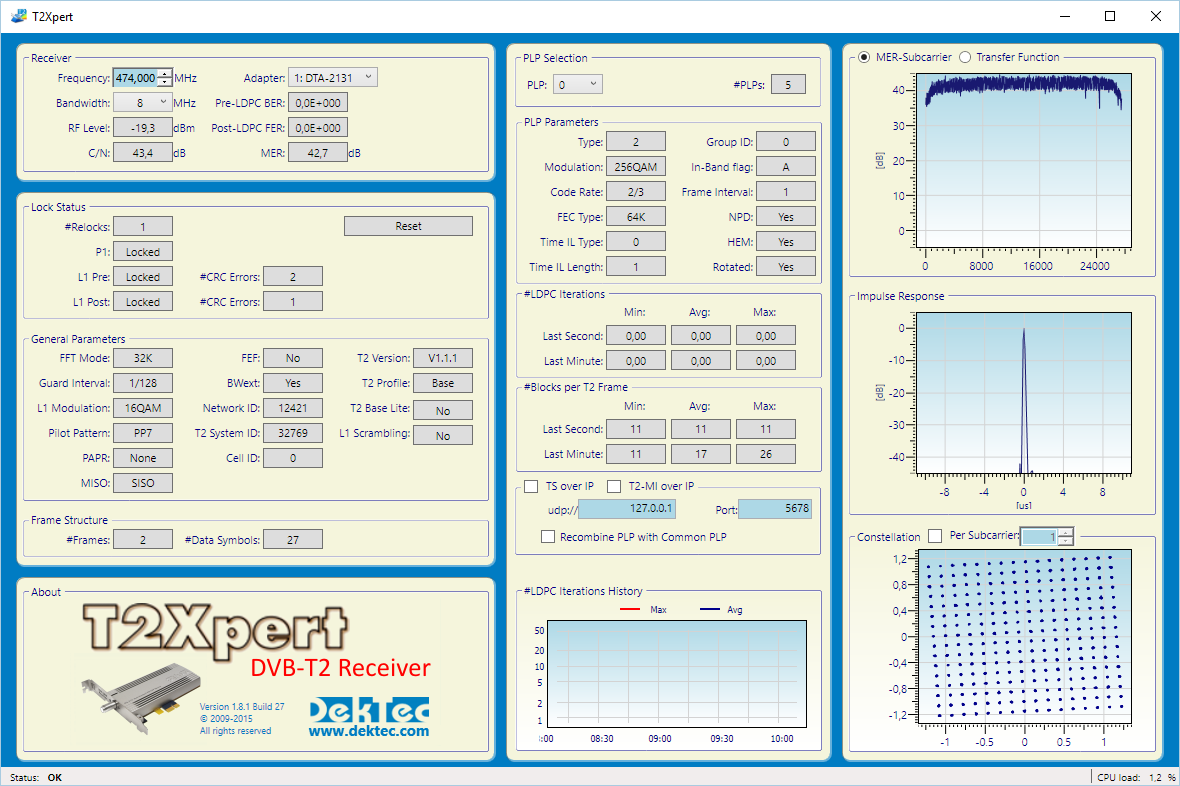

Shows all T2 parameters, signal details and RF measurements in a concise user interface.

Gathers statistics about number of LDPC iterations required to correct all errors and displays LDPC iterations history in a graph.

Applications

General-purpose DVB-T2 receiver and analyzer for R&D in the lab or in the field.

Checking all aspects of DVB-T2 signals, e.g. for validating DVB-T2 modulators.

DVB-T2 demonstrations or trials.

Teaching, showing several constellations, the effect of multi-path echo's, etc.
