VICO-2L-2110

HD x4 / IP ST 2110 converter

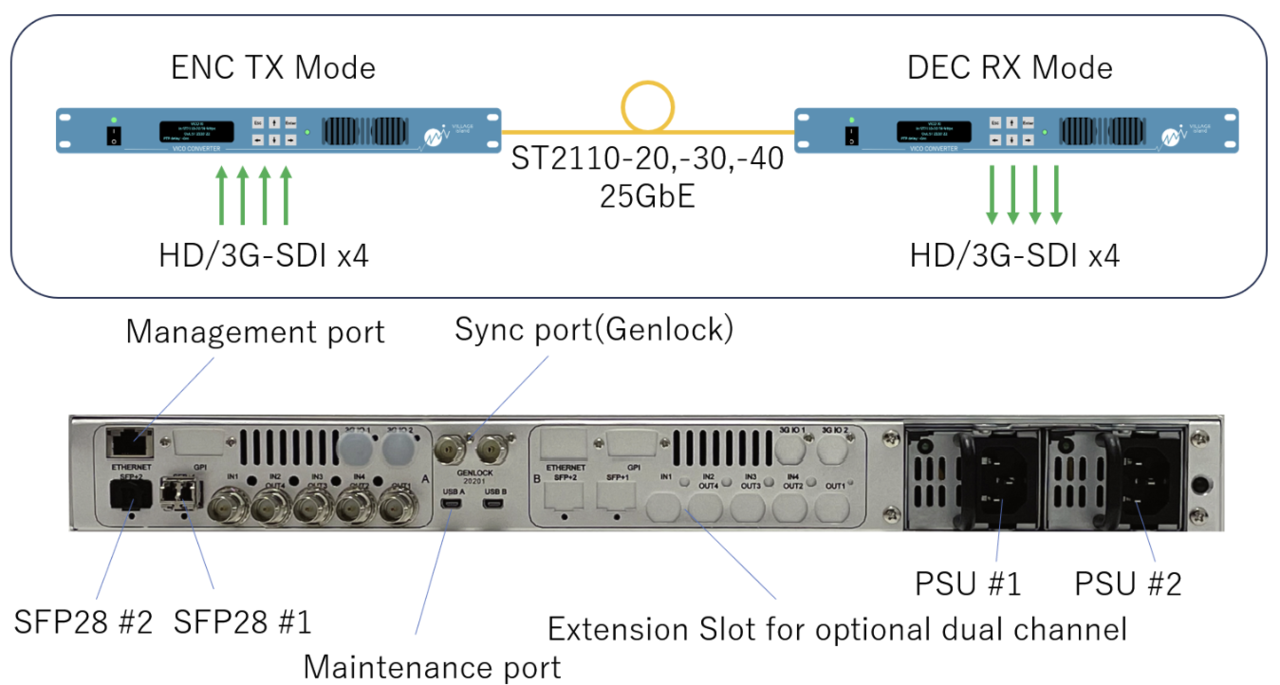

The VICO-2L-2110 is a converter capable of transmitting four HD signals over ST2110 IP signals. The video interface can be configured for either 4 x 3G-SDI or 4 x HD-SDI, and the IP interface supports 25G. A single unit can handle up to four signals for encapsulate (ENC) or decapsulate (DEC). The 1RU chassis can host up to two units and is equipped with hot-swappable redundant power supplies. Users can easily switch between ENC and DEC modes via the front panel, and also possible through WebGUI. Video, audio, and ancillary data are compliant with ST2110, ST2059, and NMOS IS-04/05 standards.

Key Product Features

SDI over IP

A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.

NMOS compatible

Supporting NMOS IS-04/05 enables smooth integration into systems.

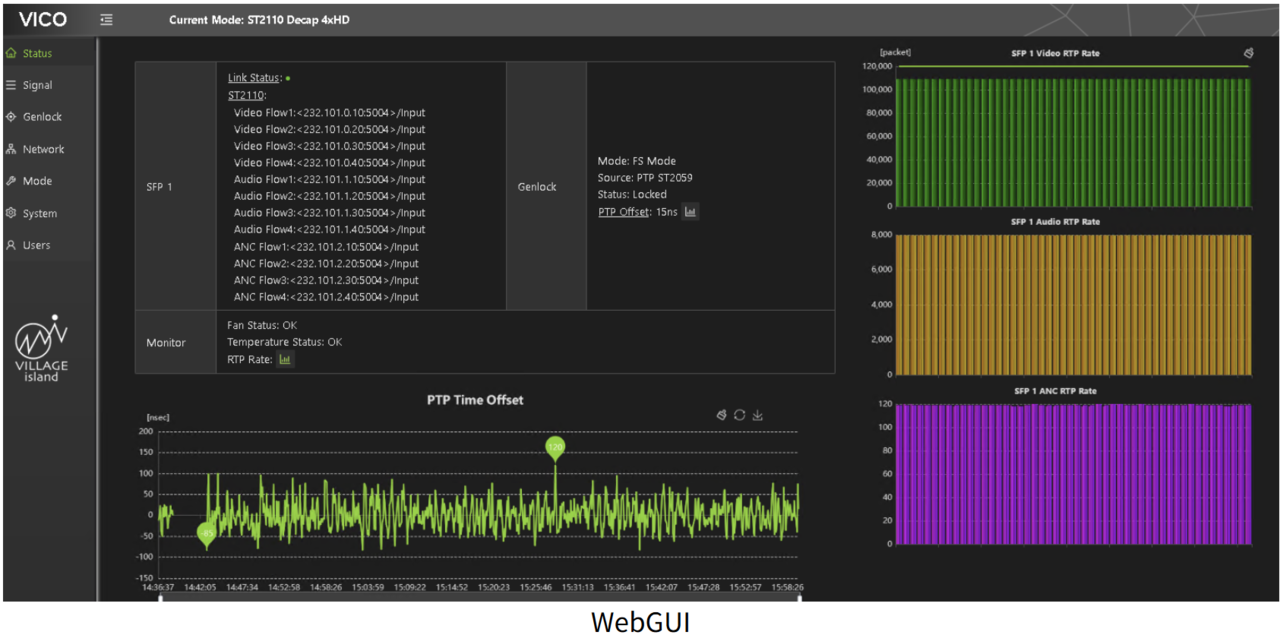

Full control WebGUI

Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
