VICO-2L-XS
HD/3G-SDI ⇔ JPEG-XS IP ST2110 Converter

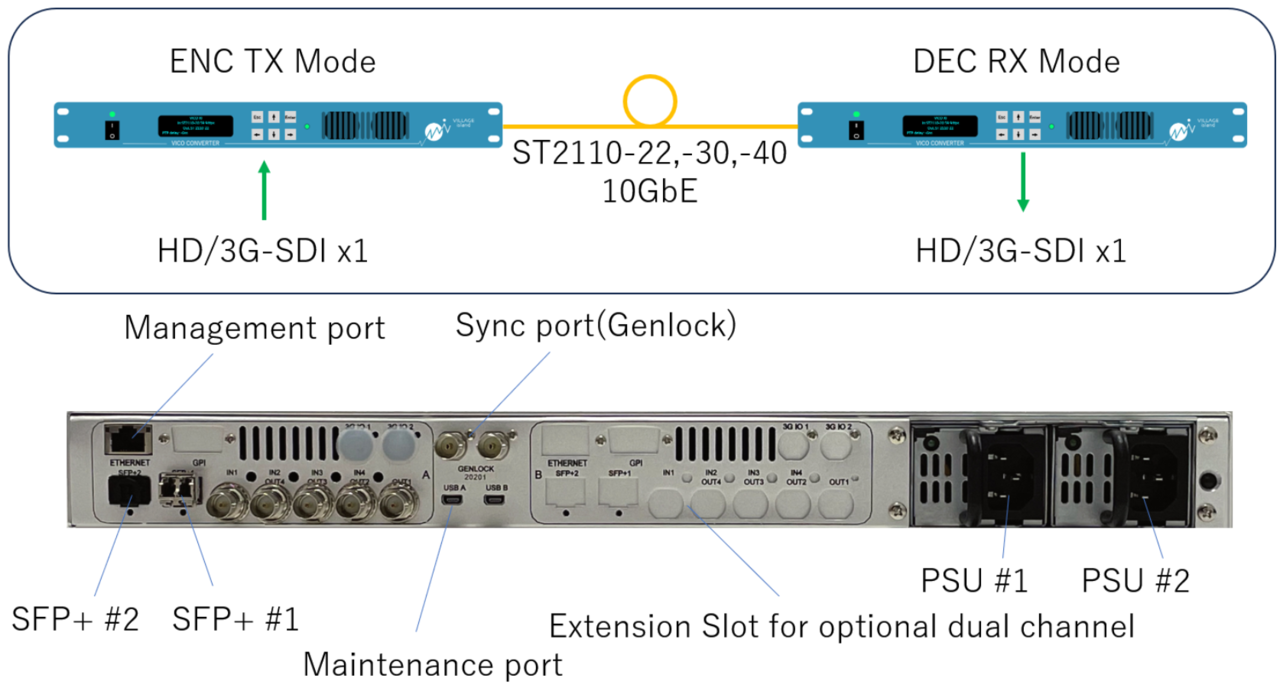

The VICO-2L-XS is empowered with a visually lossless JPEG-XS codec, enabling ultra-low latency transmission of HD video signals over IP ST2110-22. It includes ST2022-7 redundancy for data loss protection. The 1RU chassis can host up to two HD channels and is equipped with hot-swappable redundant power supplies. Users can freely switch between encoder and decoder modes on a per-channel basis.
Key Product Features
JPEG-XS
It enables transmission with ultra-low latency and the highest quality.
NMOS compatible
Supporting NMOS IS-04/05 enables smooth integration into systems.

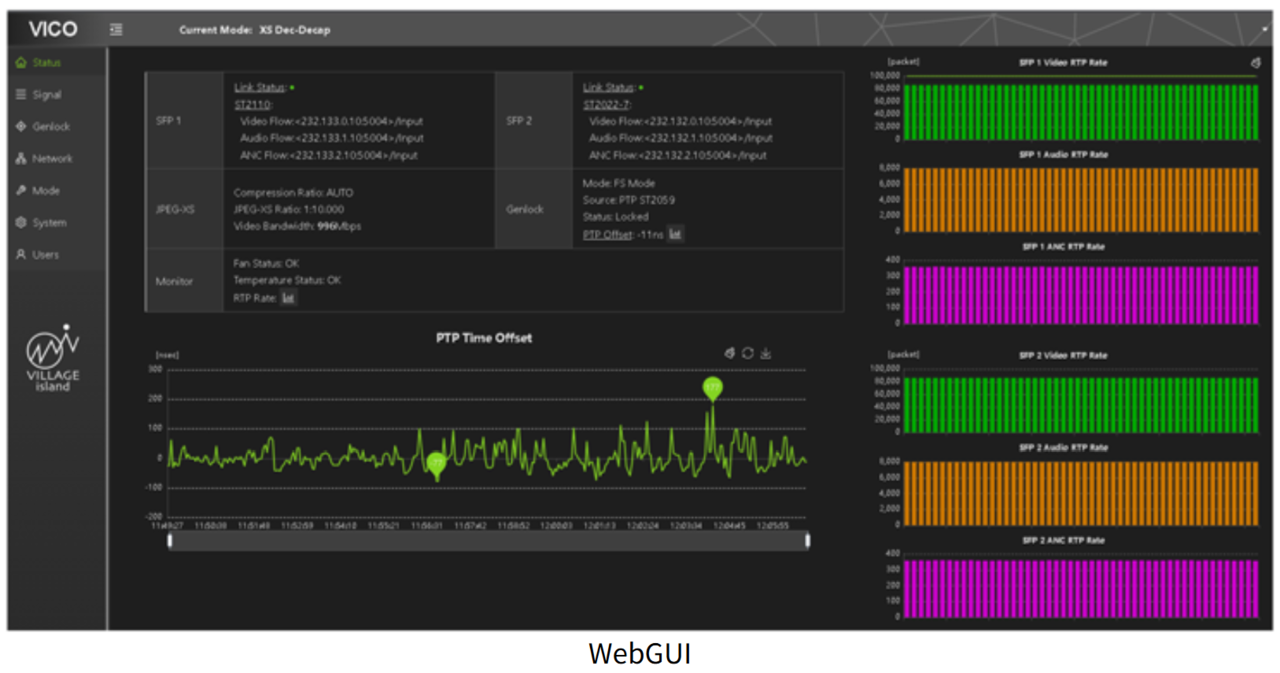

Full control WebGUI
Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
Overview
| User-configurable from 1 ms to 1 frame (16.66/33.33 ms) 6:1 ~ 80:1 (selectable from 14 levels) Visually Lossless SMPTE ST2110/ST2022-7/ST2059/NMOS IS-04/05 JPEG-XS (ISO/IEC 21122-1:2019) 1RU Rack Mount Up to 2 channels (with expansion option) Up to 16 channels per video channel |
