VICO-4L-2110

4K SDI / IP ST 2110 Conveter

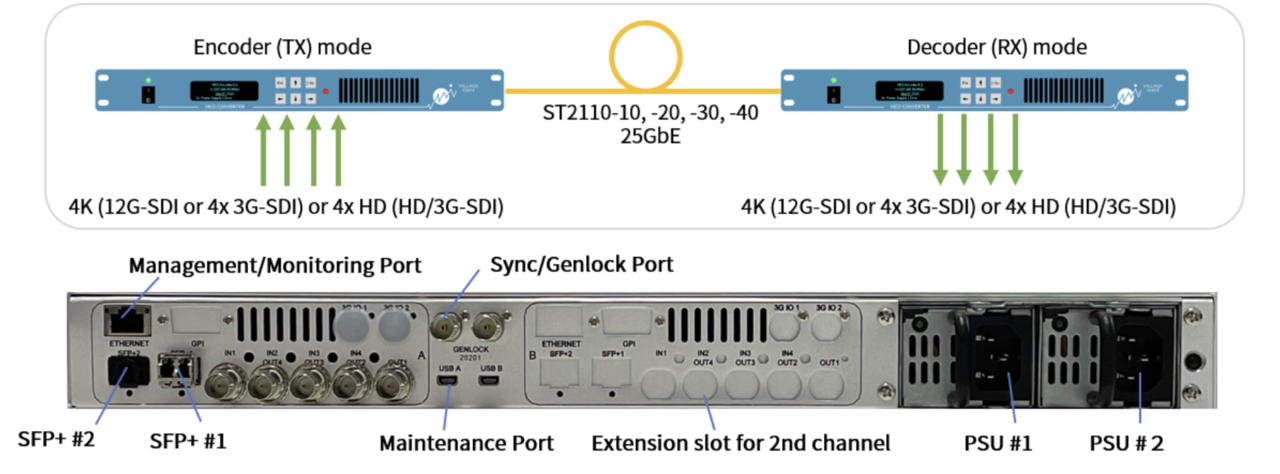

VICO-4L-2110 is our latest addition to the VICO series, enabling up to 4K video uncompressed transport over IP. The video interface can be configured as 12G-SDI, 4x3G-SDI or 4xHD-SDI. The IP interface is supporting up to 25G. The 1RU chassis can enable two channels for encapsulation or decapsulation, independently configured through the front panel, or through software interface. Video, Audio and Ancillary transport is according to ST2110, ST2059 and supporting NMOS IS-04/IS-05, with optional ST2022-7 support for stream redundancy.

Key Product Features

4K SDI over IP

A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.

NMOS compatible

Supporting NMOS IS-04/05 enables smooth integration into systems.

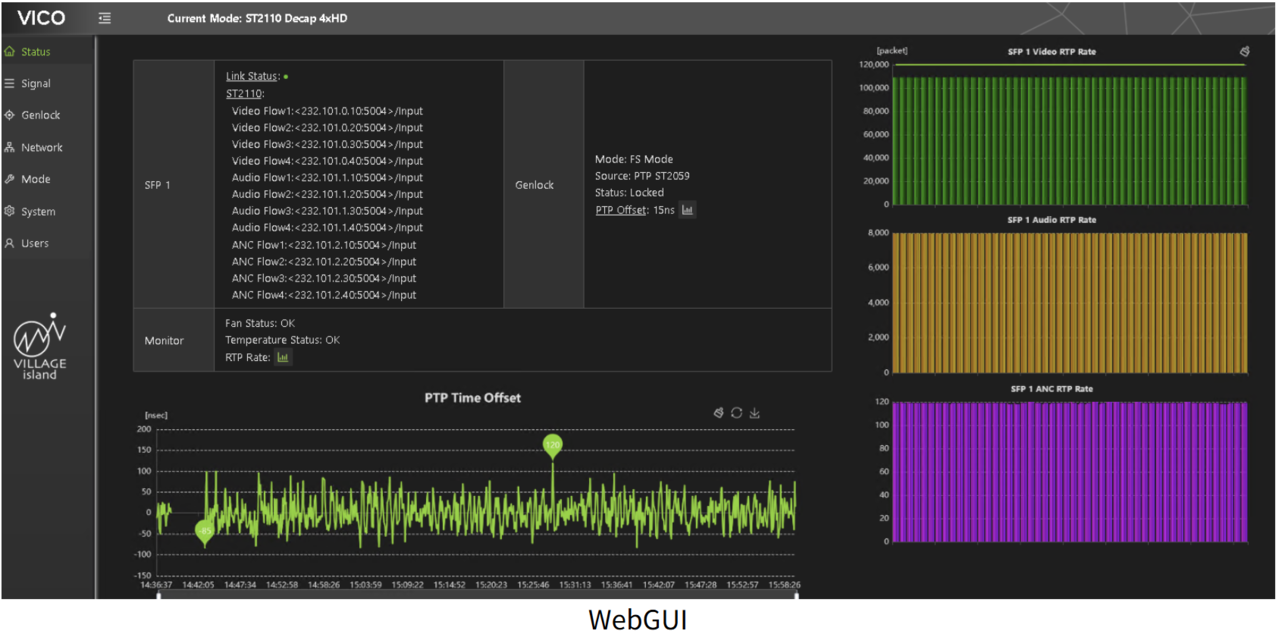

Full control WebGUI

Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
