VICO-4L-SX
4K SDI / JPEG XS IP VIDEO CONVERTER

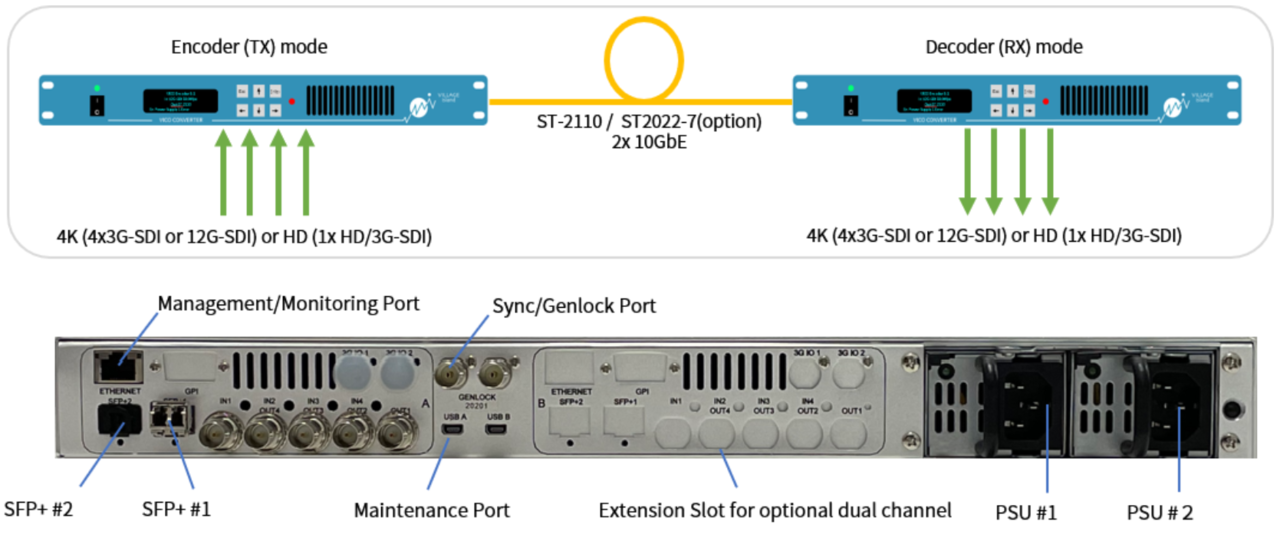

VICO-4L-XS is empowered with the visual lossless JPEG-XS codec and enables visually-loss-less conversion of 4K and HD video signal into ST2110-22 JPEG-XS stream, with optional ST2022-7 redundancy for protection against data loss. The conversion is achieved with ultra-low delay. The chassis can host up two 4K channels within a single 1RU and is equipped with hot swappable redundant power supplies. Encoding and decoding modes can be configured individually per channel.
Key Product Features
4K JPEG-XS
It enables transmission up to 4K video with ultra-low latency and the highest quality.
NMOS compatible
Supporting NMOS IS-04/05 enables smooth integration into systems.

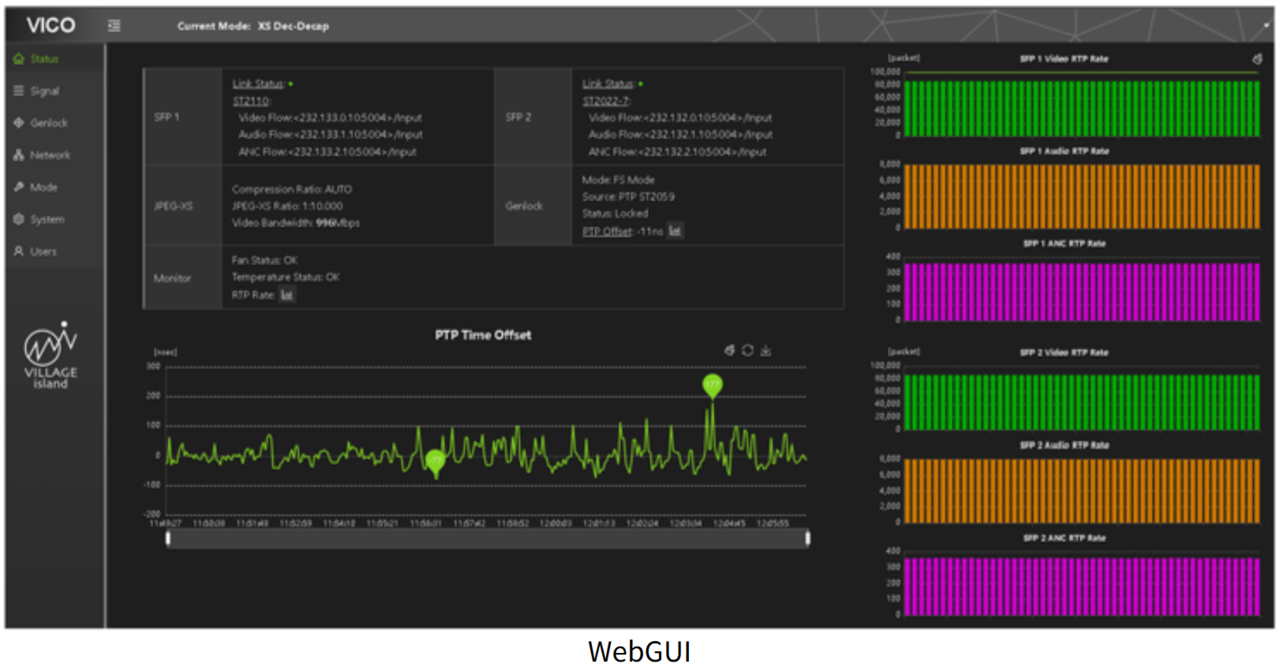

Full control WebGUI
Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
Overview
| User-configurable from 1 ms to 1 frame (16.66/33.33 ms) 6:1 ~ 80:1 (selectable from 14 levels) Visually Lossless SMPTE ST2110/ST2022-7/ST2059/NMOS IS-04/05 JPEG-XS (ISO/IEC 21122-1:2019) 1RU Rack Mount Up to 2 channels (with expansion option) Up to 16 channels per video channel |
