VICO-XI
JPEG XS (-22) ⇔ UNCOMPRESSED (-20) VIDEO OVER IP CONVERTER

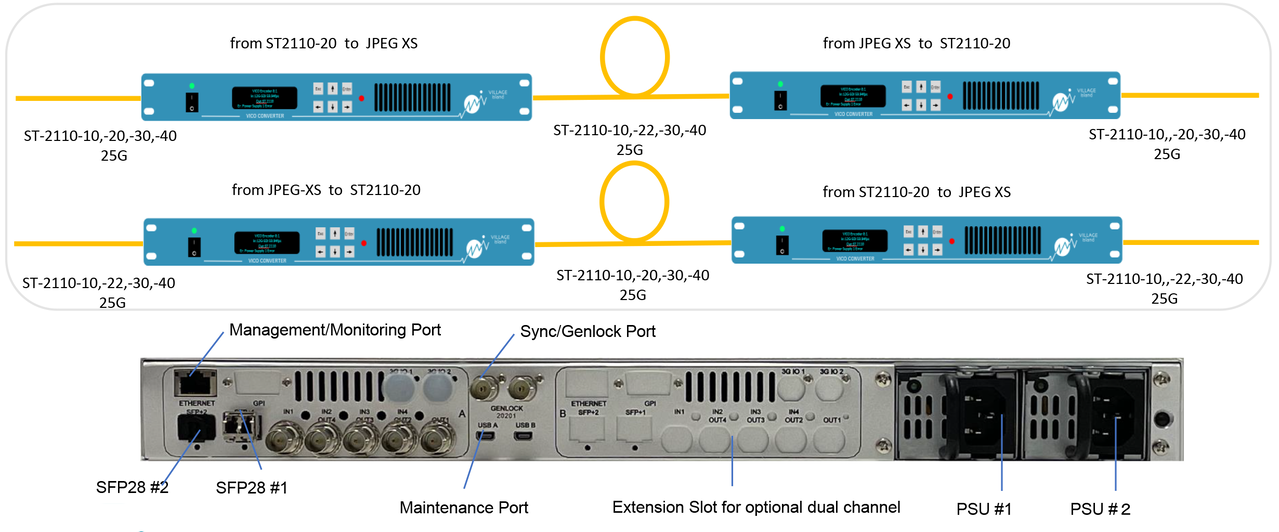

VICO-XI is the new addition to the VICO family of video over IP converters. It is empowered with the visual lossless JPEG-XS codec, and enables conversion between uncompressed ST2110-20 streams and JPEG-XS compressed ST2110-22 streams of 4K and HD video. The ST2022-7 redundancy option enables protection against data loss. The conversion is achieved with ultra-low delay, and the decoders can be synchronized through genlock or PTP(ST-2059-1/-2). The chassis can host up to two 4K channels per 1RU and is equipped with hot swappable redundant power supplies. Encoding and decoding modes can be switched and configured individually per channel.
Overview
| From less than 1ms to 1 frame (<16.6ms), depending on user operation 6:1 ~ 80:1 for 4K formats (14 selectable compression ratios) SMPTE ST2110 -10, -20, -22,-30, -40 SMPTE ST2110 / ST2022-7(option) / ST2059 / JPEG-XS (ISO/IEC 21122:2019) Maximum2 (with extension slot) per 1RU rack mount chassis 16 audio channels per 4K/HD video 25G SFP28 (SFP transceivers are not included) |
